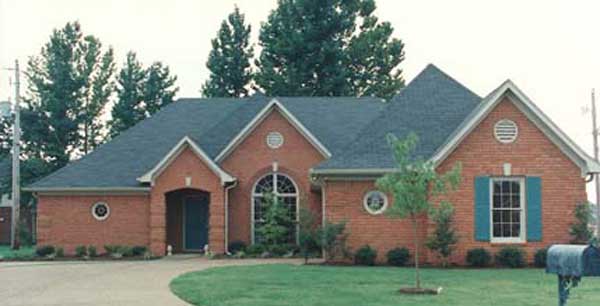

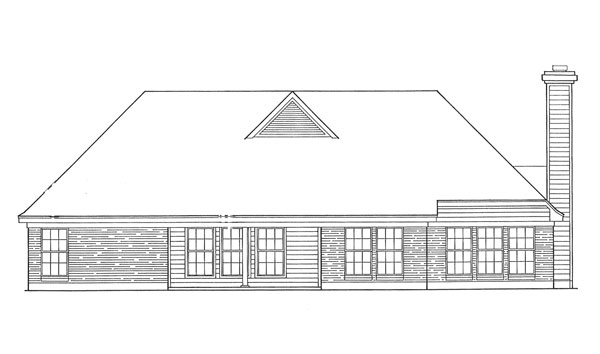

See all 4 photos and rear view
© copyright by designer
Plan: 21-09 Bellbrook
Plan Specification
Total Square Footage:
2,109
Main Level:
2,109
Bedrooms:
3
Baths:
2 Half: 0
Garages:
2
Width/Depth:
57 ft / 67 ft
Foundation:
Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

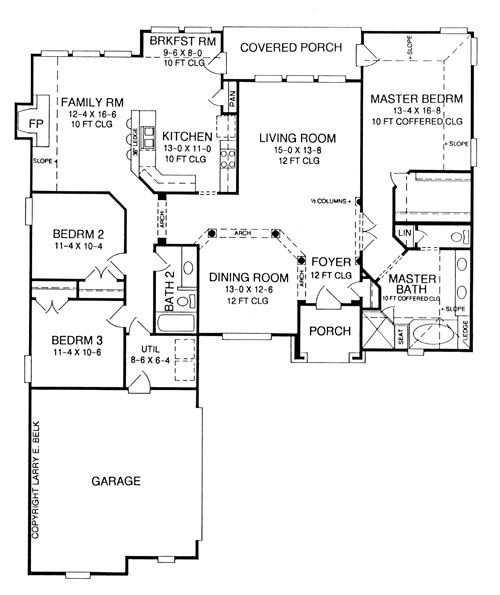

Floor Plan:
Similar plans:
20-17C
,
24-29B
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDF
PDFs NOW!™
$935.00
CAD FILE
$1,870.00
More details about our plan packages
Foundation Options
Slab
$0.00
Crawl Space
$350.00
Basement
$400.00
Additional Plan Options
Full Reverse
$300.00
Plan Details
General House Information
1
Number of Stories:
57' 8"
Width:
67' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
Ranch
Southern
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
2,109 Sq. Ft.
Main Level:
2,109 Sq. Ft.
Total:
Unfinished Square Footage
479 Sq. Ft.
Garage:
164 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
21' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
12/12
Secondary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Front
Garage Location:
2
Garage Size:
Attached
Feature:
Side-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Main Floor
• Separate Tub and Shower
• Split Bedrooms
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• Arches
• Dining Room
• Family Room
• Fireplace
• Formal LR
• Laundry 1st Fl
• Open Floor Plan
• Nook / Breakfast Area
• Peninsula / Eating Bar
Plan: 21-09, 1 story, 2,109 total square footage
