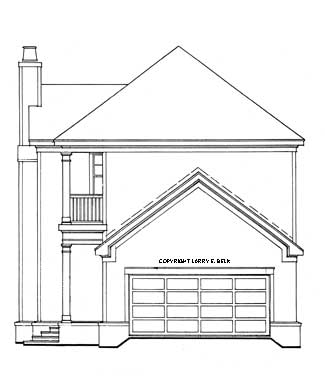

Front Rendering Rear Rendering Floor Plan
© copyright by designer

Plan: 20-17C Harborview

Plan Specification
Total Square Footage: 2,057
Main Level: 1,233
Second Level: 824
Bedrooms: 2
Baths: 3 Half: 0
Garages: 2
Width/Depth: 31 ft / 77 ft
Foundation: Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

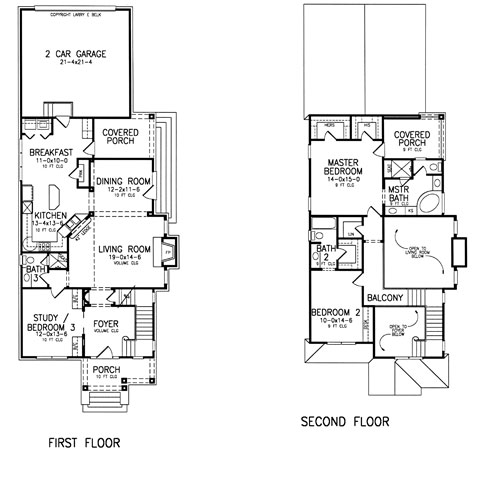

Floor Plan:
Floor Plan
Similar plans: 20-20, 21-09
House Plan Pricing
$1,050.00
$1,400.00
$1,895.00
$2,750.00
Foundation Options
$0.00
$350.00
$375.00
$400.00
Additional Plan Options
$300.00
$300.00
$250.00
$250.00
Plan Details
General House Information
2
Number of Stories:
31' 10"
Width:
77' 10"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
Vacation
Cottage
Traditional
Number of Rooms
2
Bedrooms:
3
Full Baths:
Finished Square Footage
1,233 Sq. Ft.
Main Level:
824 Sq. Ft.
Upper Level:
2,057 Sq. Ft.
Total:
Unfinished Square Footage
480 Sq. Ft.
Garage:
202 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
30' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
6/12
Secondary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Rear
Garage Location:
2
Garage Size:
Attached
Feature:
Rear-entry
Feature:
Key Features
• Guest Suite
• His and Hers Master Closets
• Master Bdrm Upstairs
• Separate Tub and Shower
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Dining Room
• Family Room
• Fireplace
• Foyer
• Home Office
• Laundry 1st Fl
• Loft / Balcony
• Open Floor Plan
• Vaulted Ceilings
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
• Suited for narrow lot
