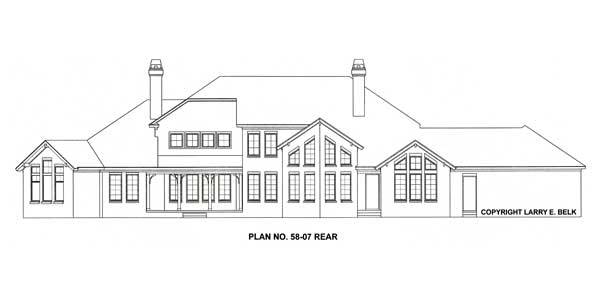

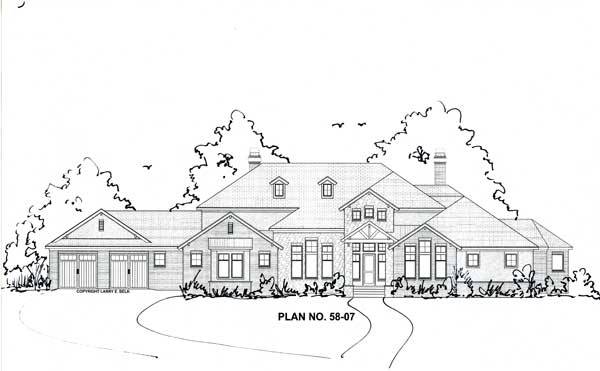

Front Rendering Front Rendering Rear Rendering First Floor Plan Second Floor Plan
© copyright by designer

Plan: 58-07 Villa Dorado

Plan Specification
Total Square Footage: 5,852
Main Level: 4,735
Second Level: 1,117
Bedrooms: 5
Baths: 5 Half: 2
Garages: 4
Width/Depth: 136 ft / 81 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

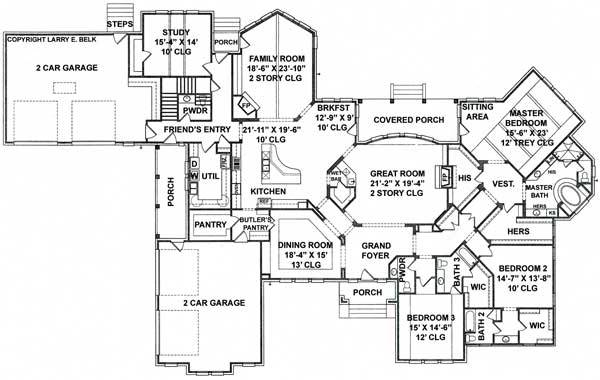

First Floor Plan:
First Floor Plan
© copyright by designer

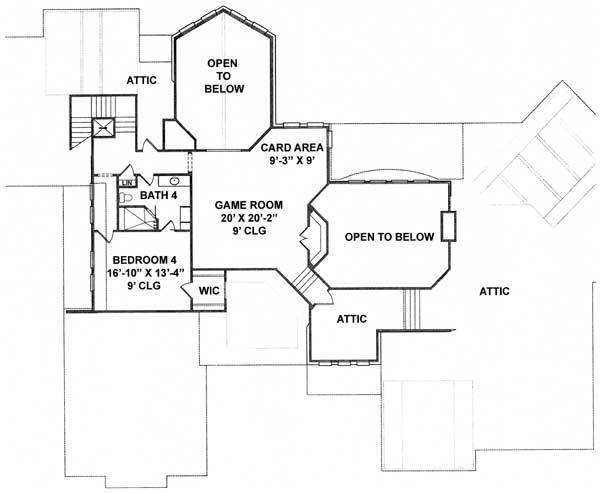

Second Floor Plan:
Second Floor Plan
Add to Favorites
Purchase Plans
House Plan Pricing
$1,995.00
Foundation Options
$0.00
$350.00
$400.00
Plan Details
General House Information
2
Number of Stories:
136' 5"
Width:
81' 1"
Depth:
Single
Dwelling Number:
Exterior Style
Luxury
Mountain
Craftsman
European
Traditional
Number of Rooms
5
Bedrooms:
5
Full Baths:
2
Half Baths:
Finished Square Footage
4,735 Sq. Ft.
Main Level:
1,117 Sq. Ft.
Upper Level:
5,852 Sq. Ft.
Total:
Unfinished Square Footage
1521 Sq. Ft.
Garage:
434 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Side
Garage Location:
4
Garage Size:
Attached
Feature:
Key Features
• Double Vanity Sink
• Guest Suite
• His and Hers Master Closets
• Master Bdrm Main Floor
• Separate Tub and Shower
• Sitting Area
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• Dining Room
• Family Room
• Fireplace
• Foyer
• Great Room
• Home Office
• Laundry 1st Fl
• Library/Media Rm
• Loft / Balcony
• Open Floor Plan
• Rec Room
• Storage Space
• Vaulted Ceilings
• Butler's Pantry
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
