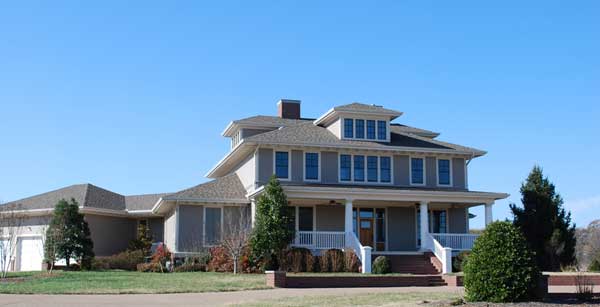

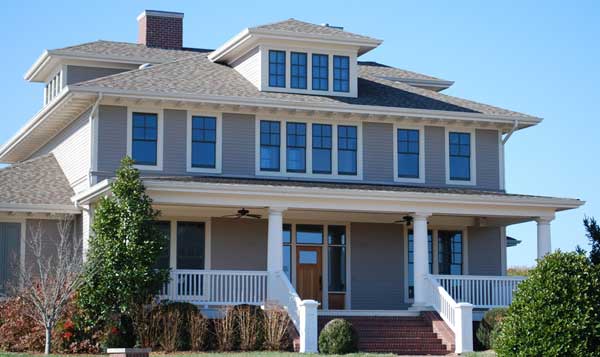

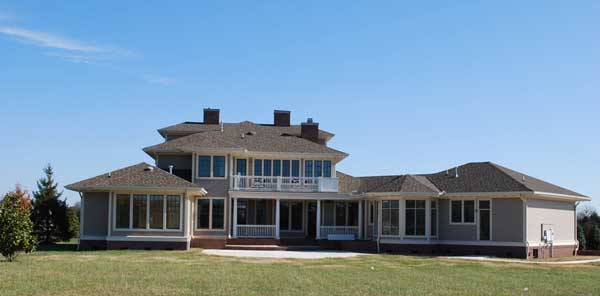

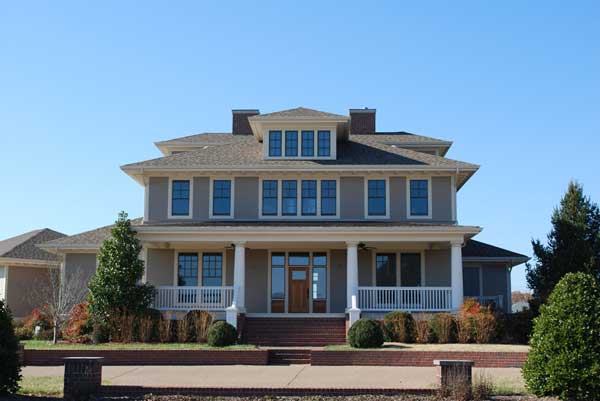

See all 7 photos and rear view
© copyright by designer
Plan: 50-02 Sarasota
Plan Specification
Total Square Footage:
5,000
Main Level:
3,253
Second Level:
1,747
Bedrooms:
5
Baths:
5 Half: 1
Garages:
3
Width/Depth:
112 ft / 89 ft
Foundation:
Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

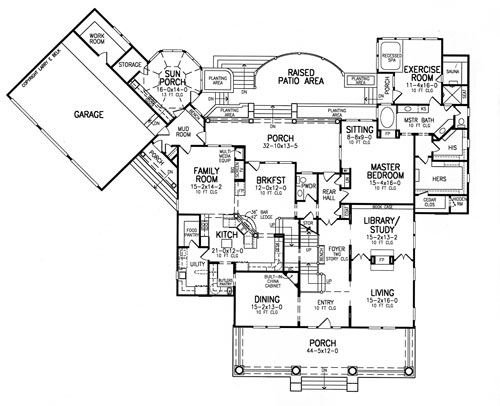

First Floor Plan:
© copyright by designer

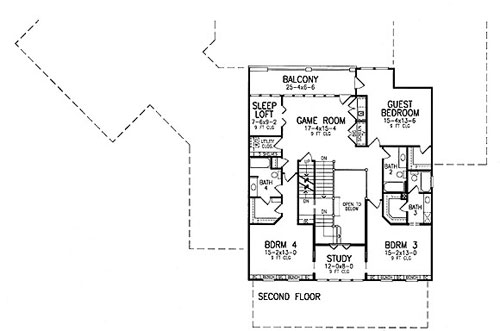

Second Floor Plan:
Similar plans:
47-05
,
50-03
Purchase Plans
House Plan Pricing
PDF Bid Set
$1,250.00
PDF
$1,995.00
CAD FILE Plus PDF
$3,500.00
More details about our plan packages
Foundation Options
Slab
$0.00
Crawl Space
$400.00
Daylight Basement
$450.00
Basement
$475.00
Additional Plan Options
Full Reverse
$375.00
2x6 Exterior Walls
$375.00
Add 1 Garage Bay
$250.00
Remove 1 Garage Bay
$250.00
Plan Details
General House Information
2
Number of Stories:
112' 9"
Width:
89' 10"
Depth:
Single
Dwelling Number:
Exterior Style
Luxury
Old House Classics
Craftsman
Number of Rooms
5
Bedrooms:
5
Full Baths:
1
Half Baths:
Finished Square Footage
3,253 Sq. Ft.
Main Level:
1,747 Sq. Ft.
Upper Level:
5,000 Sq. Ft.
Total:
Unfinished Square Footage
842 Sq. Ft.
Garage:
1192 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
30' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
5/12
Primary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Rear
Garage Location:
3
Garage Size:
Attached
Feature:
Side-entry
Feature:
Key Features
• Double Vanity Sink
• Guest Suite
• His and Hers Master Closets
• Master Bdrm Main Floor
• Separate Tub and Shower
• Sitting Area
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Screened Porch/Sunroom
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Dining Room
• Exercise Room
• Family Room
• Fireplace
• Formal LR
• Foyer
• Home Office
• Laundry 1st Fl
• Library/Media Rm
• Loft / Balcony
• Mud Room
• Open Floor Plan
• Rec Room
• Storage Space
• Vaulted Ceilings
• Workshop
• Butler's Pantry
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
