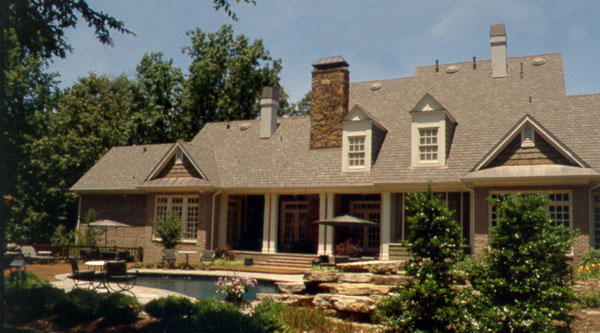

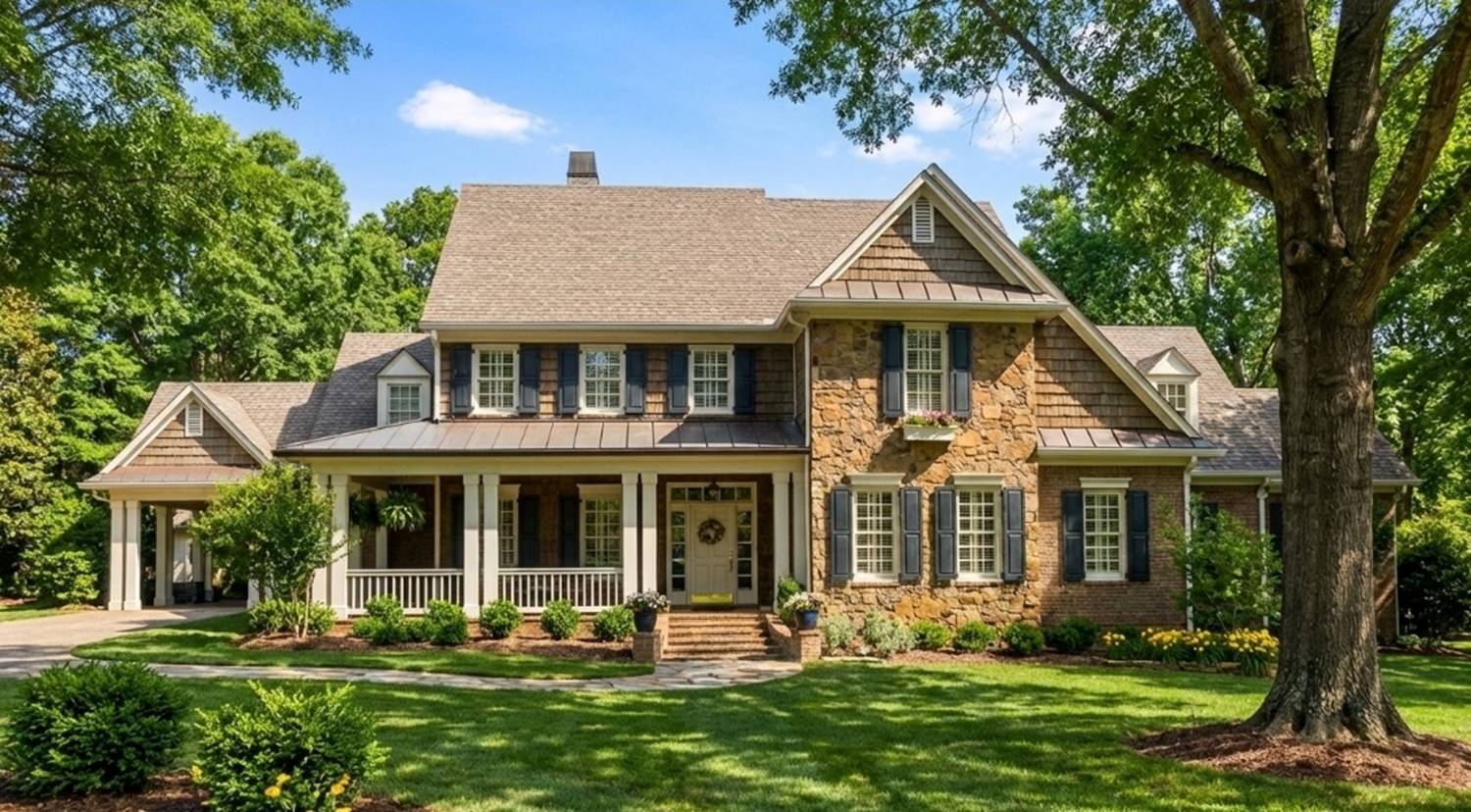

Front Photo Rear Photo Kitchen Kitchen 2 Sunroom Front Rendering Detached Garage First Floor Plan Second Floor Plan
© copyright by designer

Plan: 42-03 Cedar Park

Plan Specification
Total Square Footage: 4,203
Main Level: 3,120
Second Level: 1,083
Bedrooms: 4
Baths: 5 Half: 1
Garages: 3
Width/Depth: 118 ft / 52 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

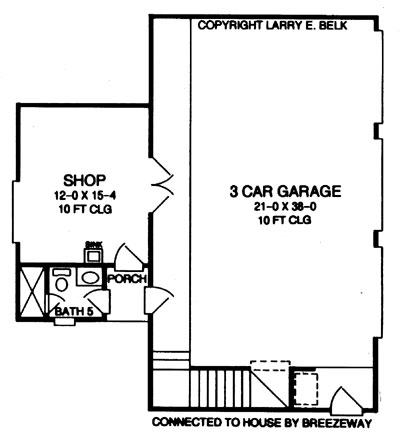

Detached Garage:
Detached Garage
© copyright by designer

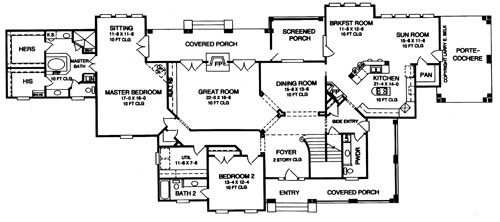

First Floor Plan:
First Floor Plan
© copyright by designer

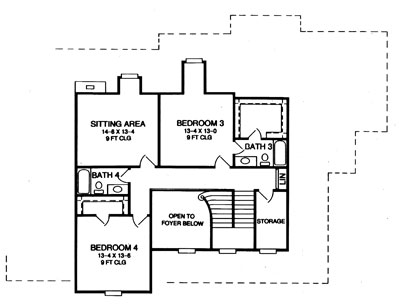

Second Floor Plan:
Second Floor Plan
Similar plans: 41-01, 42-05
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs NOW!™ $1,625.00
Foundation Options
$0.00
$350.00
$400.00
Plan Details
General House Information
2
Number of Stories:
118' 1"
Width:
52' 2"
Depth:
Single
Dwelling Number:
Exterior Style
Luxury
Old House Classics
Farmhouse
Number of Rooms
4
Bedrooms:
5
Full Baths:
1
Half Baths:
Finished Square Footage
3,120 Sq. Ft.
Main Level:
1,083 Sq. Ft.
Upper Level:
4,203 Sq. Ft.
Total:
Unfinished Square Footage
1311 Sq. Ft.
Garage:
960 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
33' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
10/12
Secondary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Side
Garage Location:
3
Garage Size:
Detached
Feature:
Key Features
• Double Vanity Sink
• Guest Suite
• His and Hers Master Closets
• Master Bdrm Main Floor
• Separate Tub and Shower
• Sitting Area
• Split Bedrooms
• Walk-in Closet
• Courtyard
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Screened Porch/Sunroom
• Wraparound Porch
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Bonus Room
• Dining Room
• Fireplace
• Foyer
• Great Room
• Laundry 1st Fl
• Library/Media Rm
• Open Floor Plan
• Storage Space
• Vaulted Ceilings
• Workshop
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
