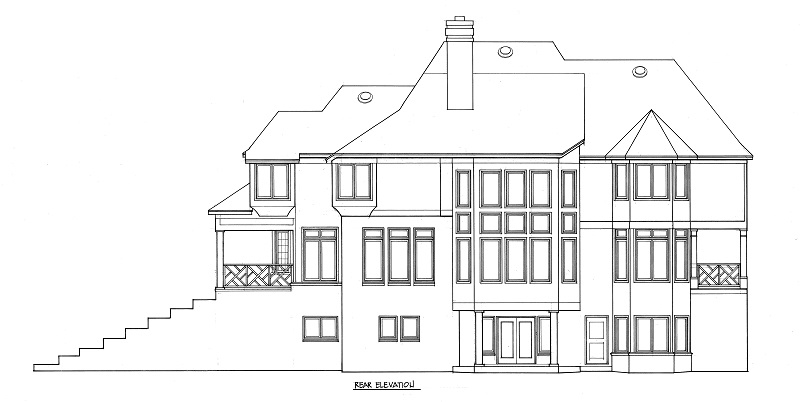

Front Rendering Rear Elevation First Floor Plan Second Floor Plan Basement Plan
© copyright by designer

Plan: 41-06 Chesney

Plan Specification
Total Square Footage: 4,146
Main Level: 2,340
Second Level: 1,806
Lower Level: 1,608
Bedrooms: 4
Baths: 4 Half: 1
Garages: 2
Width/Depth: 117 ft / 74 ft
Foundation: Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

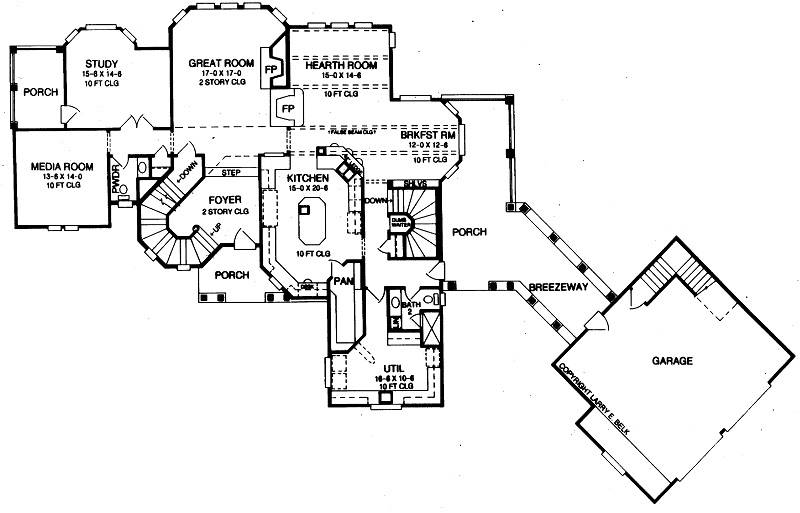

First Floor Plan:
First Floor Plan
© copyright by designer

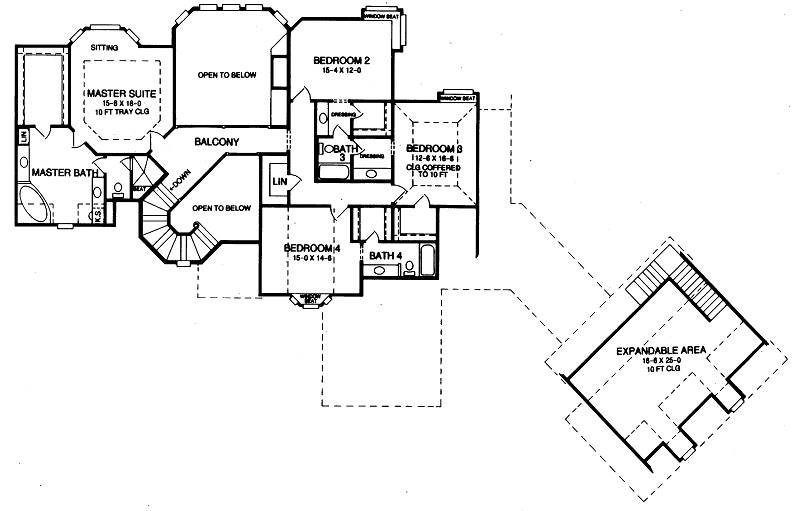

Second Floor Plan:
Second Floor Plan
© copyright by designer

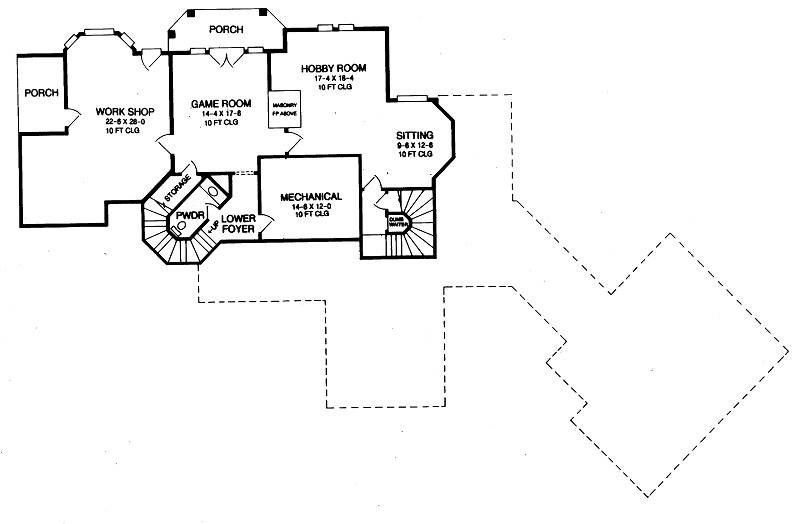

Basement Plan:
Basement Plan
House Plan Pricing
$1,450.00
$1,995.00
$3,500.00
Foundation Options
$0.00
$400.00
$450.00
$500.00
Additional Plan Options
$375.00
$375.00
$250.00
$250.00
Plan Details
General House Information
3
Number of Stories:
117' 5"
Width:
74' 5"
Depth:
Single
Dwelling Number:
Exterior Style
Luxury
Number of Rooms
4
Bedrooms:
4
Full Baths:
1
Half Baths:
Finished Square Footage
2,340 Sq. Ft.
Main Level:
1,806 Sq. Ft.
Upper Level:
1,608 Sq. Ft.
Lower Level:
4,146 Sq. Ft.
Total:
Unfinished Square Footage
738 Sq. Ft.
Garage:
673 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Front
Garage Location:
2
Garage Size:
Detached
Feature:
Front-entry
Feature:
Side-entry
Feature:
Key Features
• Basement
• Crawlspace
• Slab
