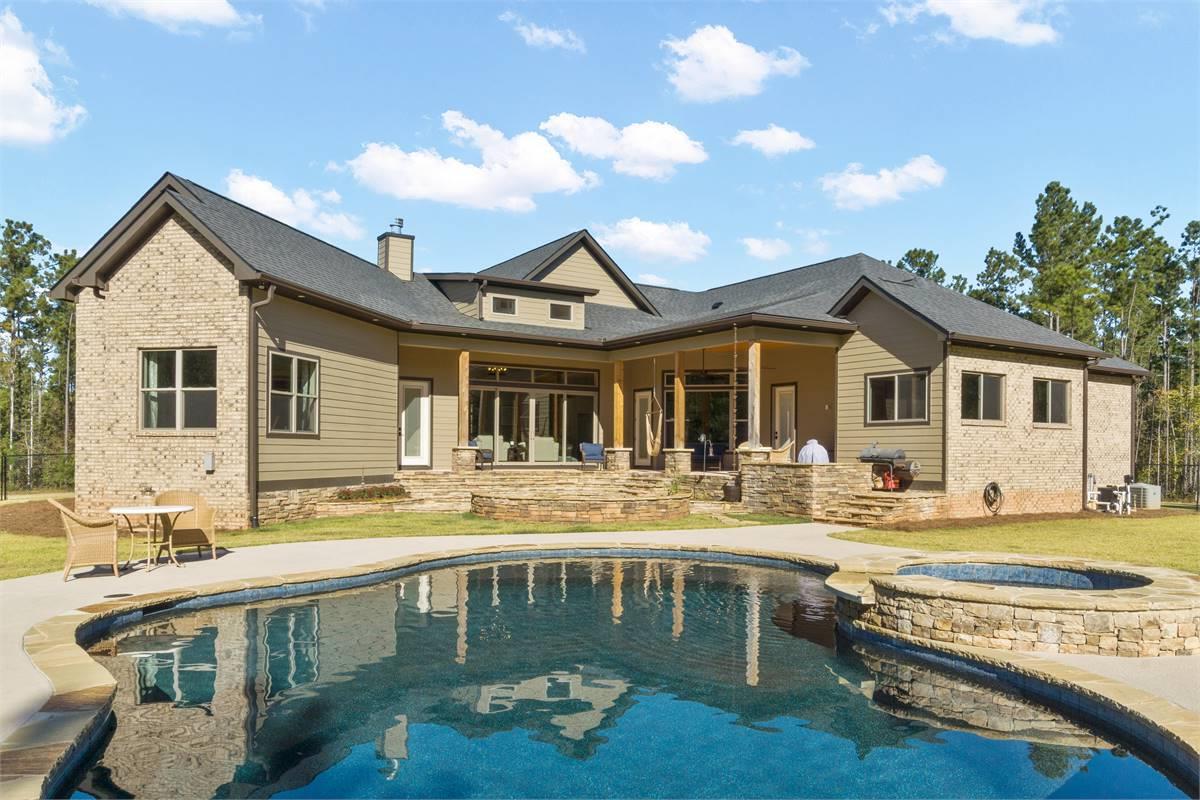

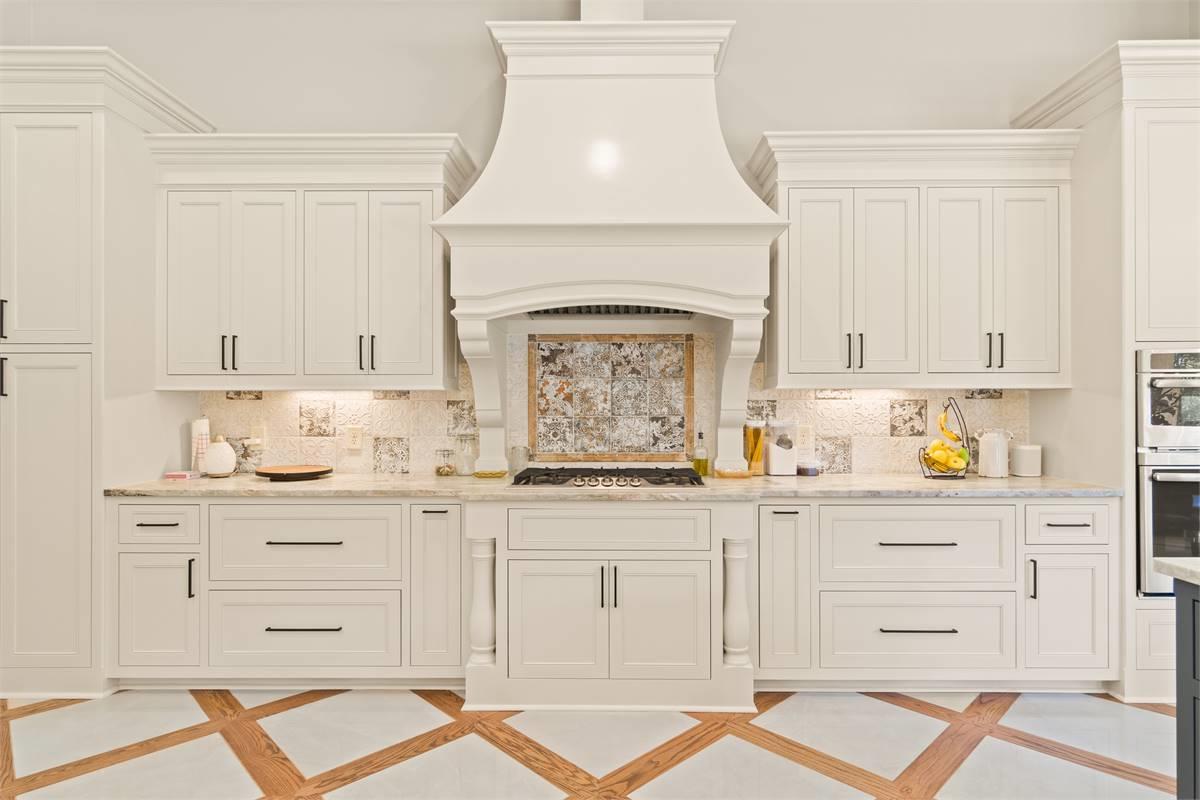

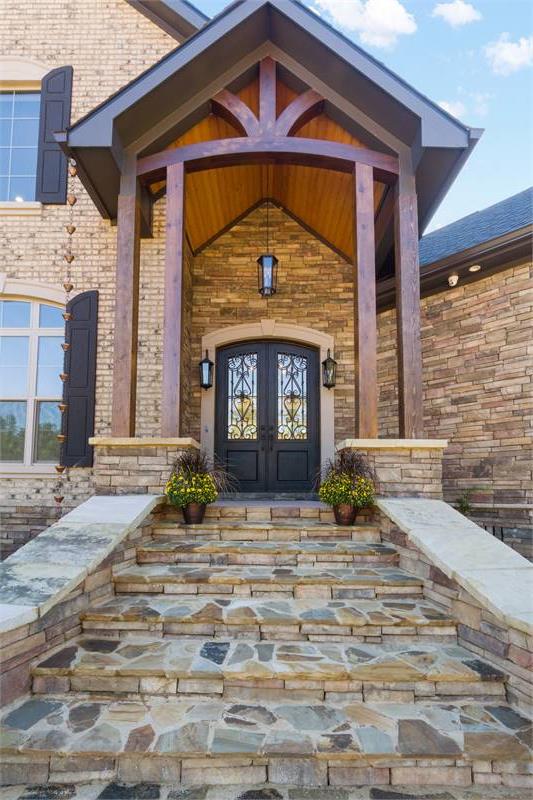

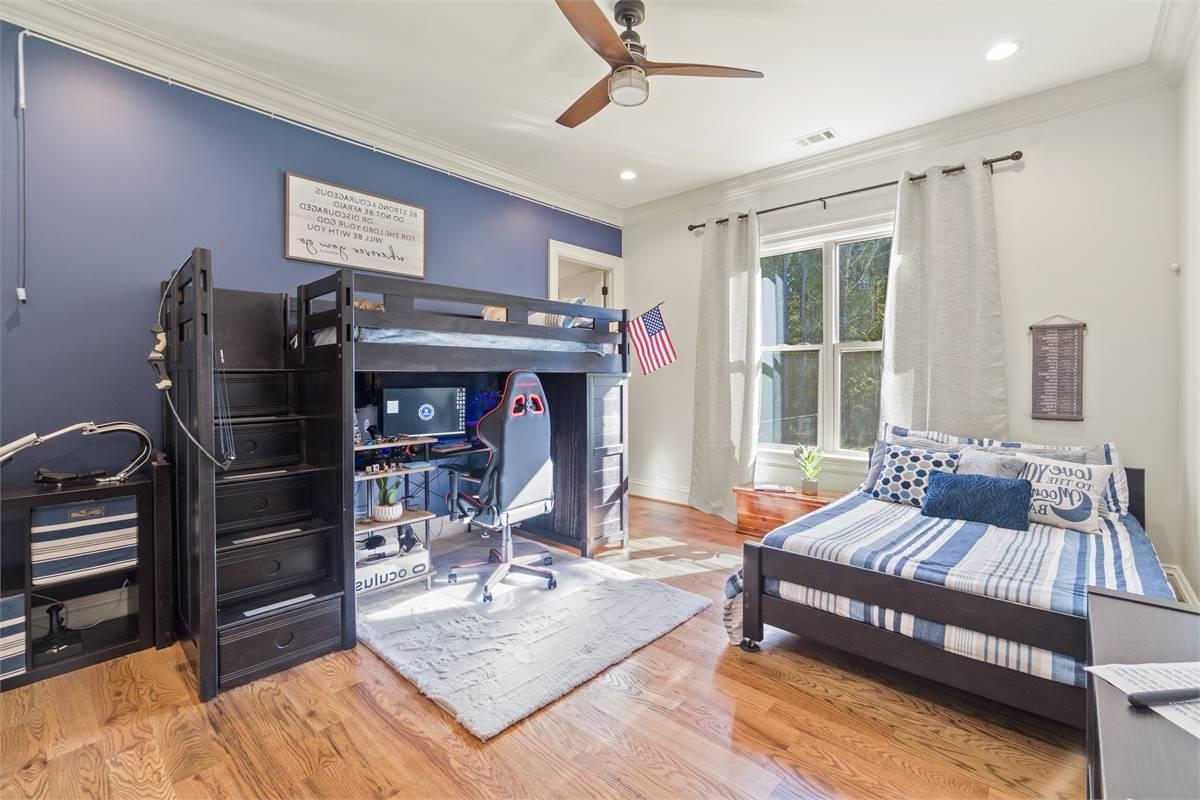

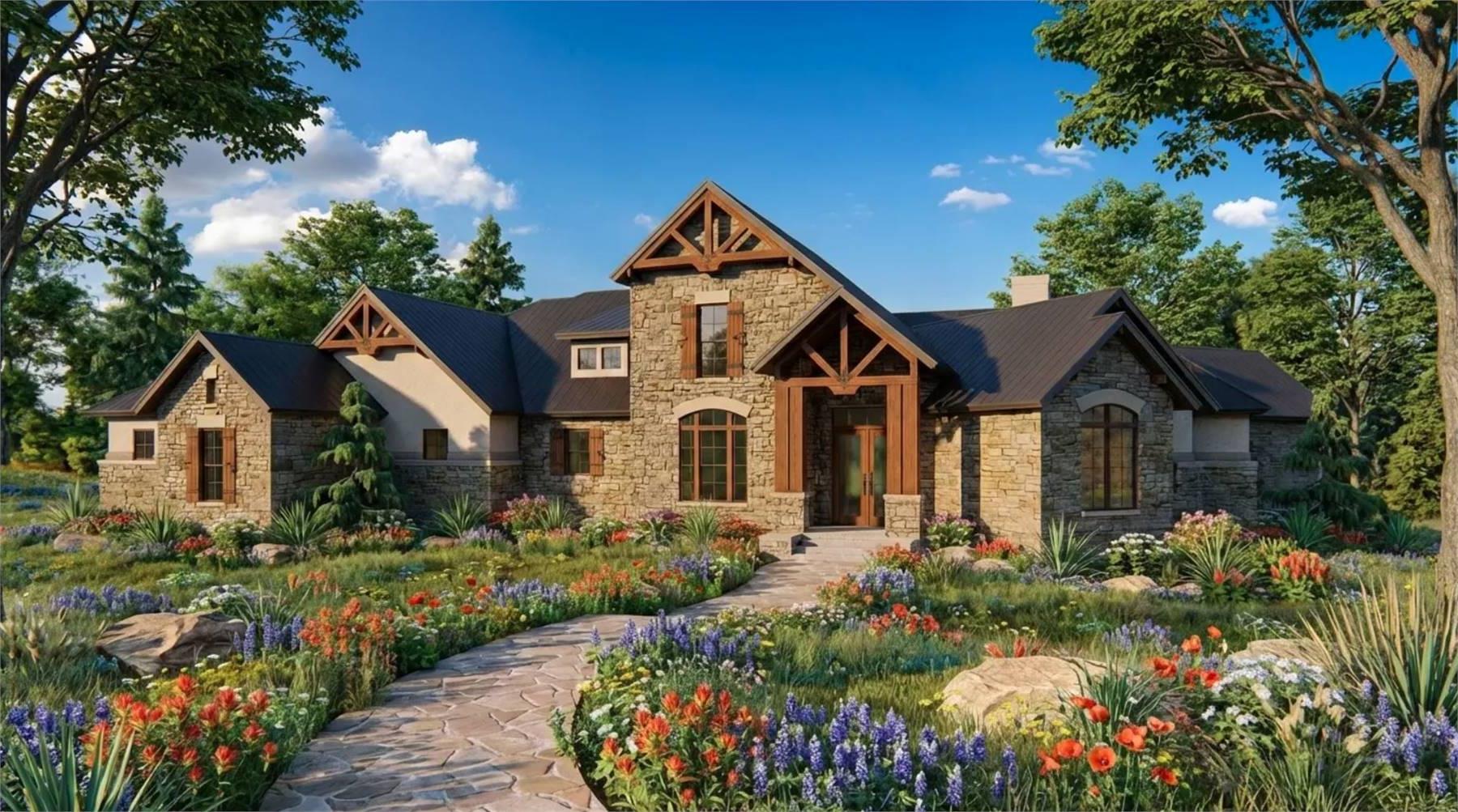

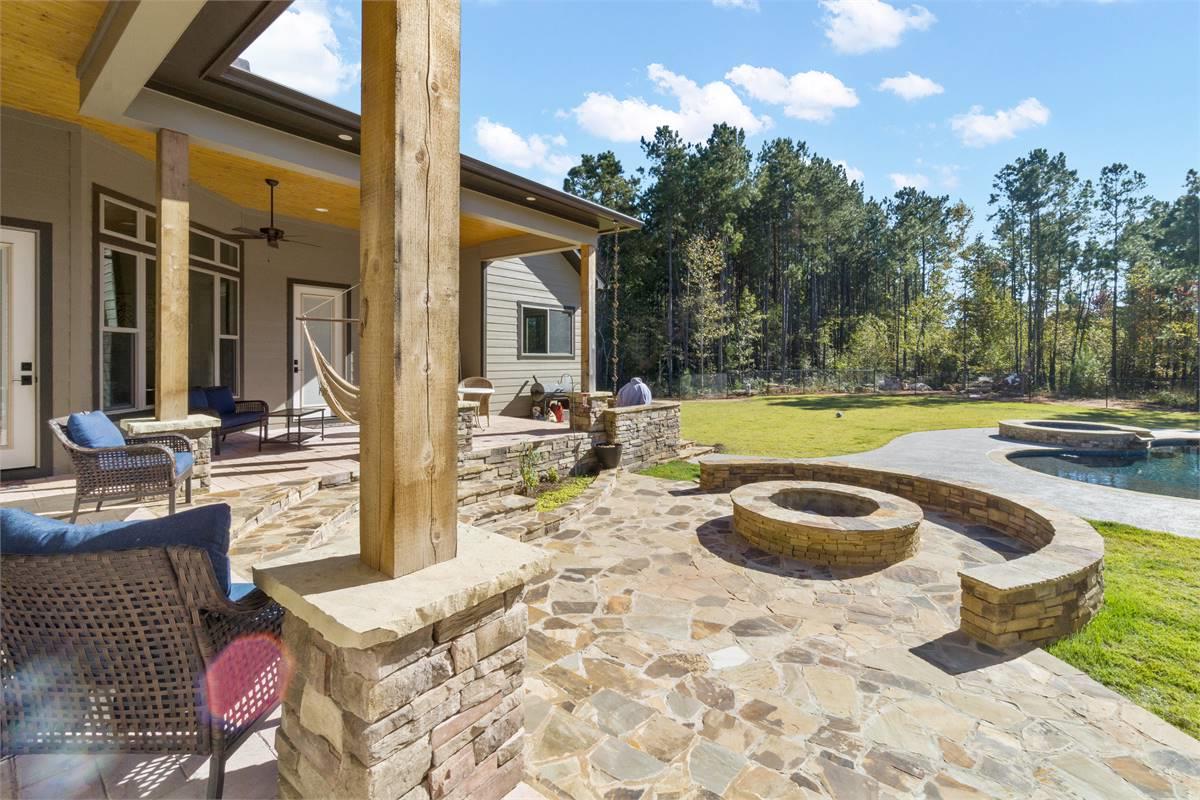

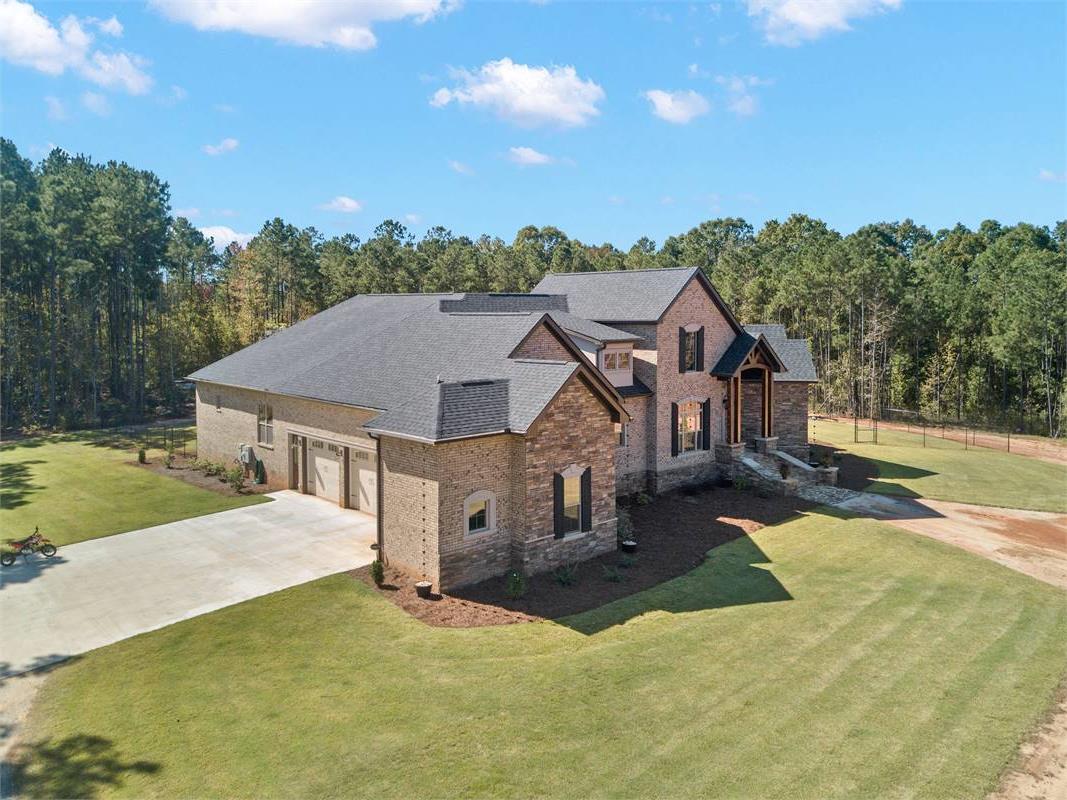

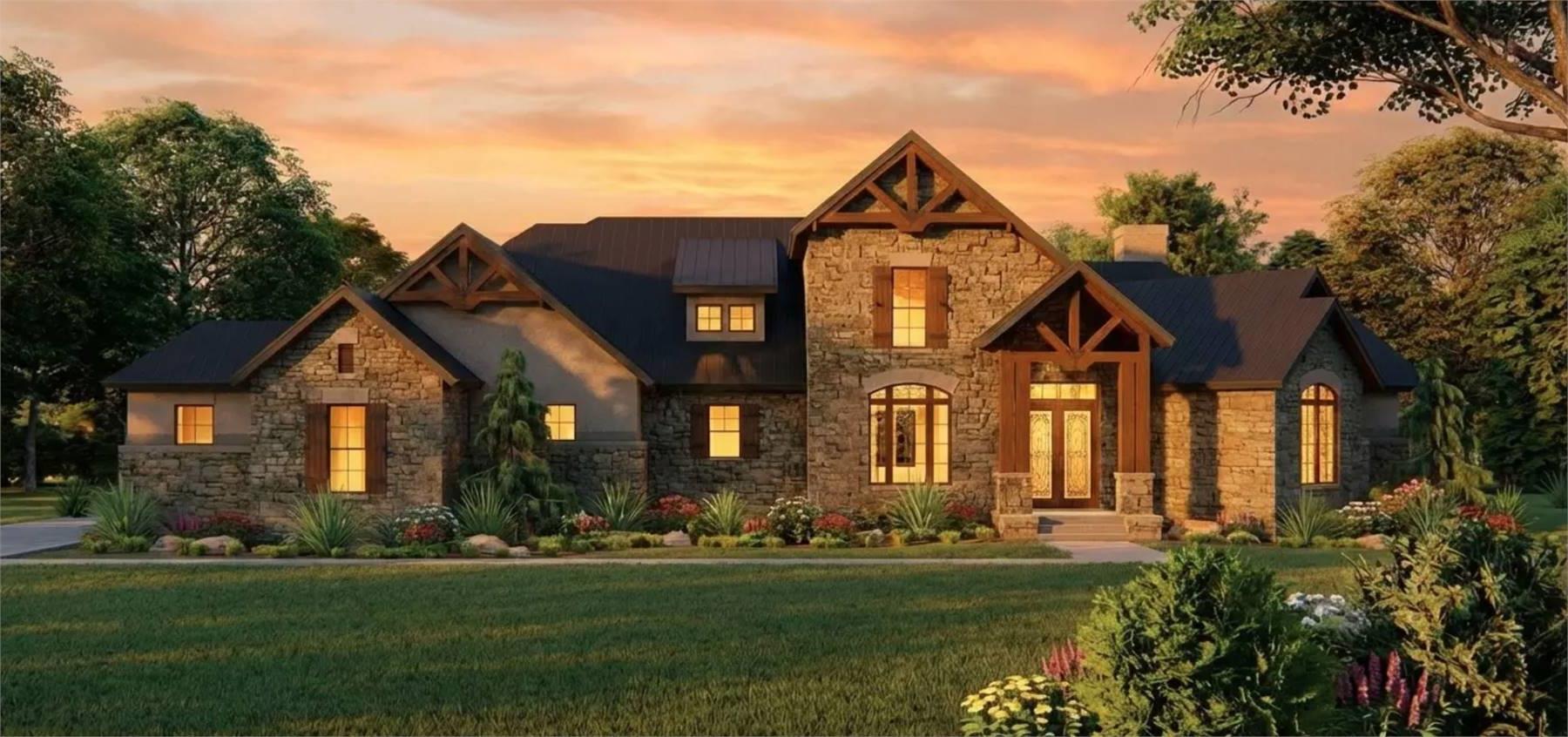

See all 46 photos and rear view
© copyright by designer
Plan: 39-17 Nacogdoches
Plan Specification
Total Square Footage:
3,886
Main Level:
3,796
Second Level:
90
Bedrooms:
4
Baths:
3 Half: 1
Garages:
3
Width/Depth:
103 ft / 88 ft
Foundation:
Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
Purchase Plans
House Plan Pricing
PDF Bid Set
$1,250.00
PDF
$1,750.00
Multi-Use PDF
$2,495.00
CAD FILE Plus PDF
$3,250.00
More details about our plan packages
Foundation Options
Slab
$0.00
Crawl Space
$400.00
Daylight Basement
$425.00
Basement
$500.00
Additional Plan Options
Full Reverse
$375.00
2x6 Exterior Walls
$375.00
Add 1 Garage Bay
$250.00
Remove 1 Garage Bay
$250.00
Plan Details
General House Information
1
Number of Stories:
103' 6"
Width:
88' 5"
Depth:
Single
Dwelling Number:
Exterior Style
Luxury
Mountain
OtherCustom
Craftsman
European
Ranch
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
3,796 Sq. Ft.
Main Level:
90 Sq. Ft.
Upper Level:
3,886 Sq. Ft.
Total:
Unfinished Square Footage
1252 Sq. Ft.
Garage:
473 Sq. Ft.
Porch:
137 Sq. Ft.
Patio:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Front
Garage Location:
3
Garage Size:
Attached
Feature:
Oversized
Feature:
Side-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Main Floor
• Separate Tub and Shower
• Sitting Area
• Split Bedrooms
• Walk-in Closet
• Covered Rear Porch
• Deck
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Fireplace
• Foyer
• Great Room
• Home Office
• Laundry 1st Fl
• Loft / Balcony
• Open Floor Plan
• Rec Room
• Storage Space
• Vaulted Ceilings
• Workshop
• Butler's Pantry
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
Plan: 39-17, 1 story, 3,886 total square footage
