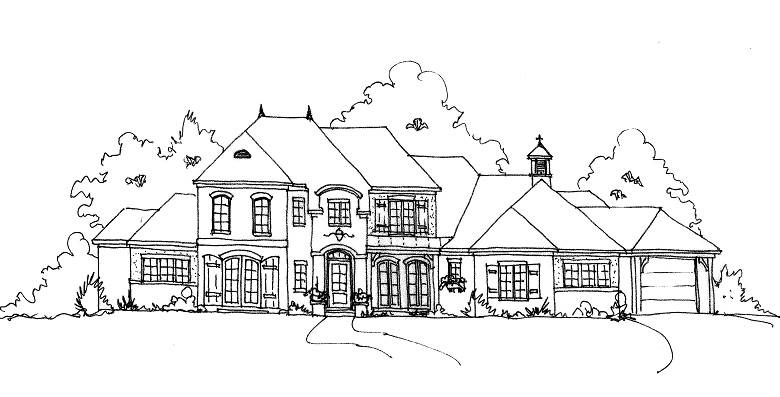

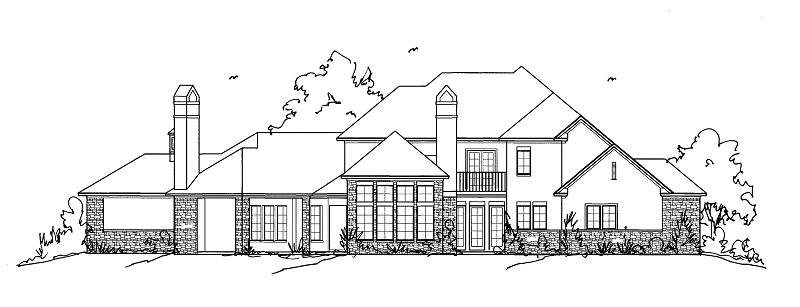

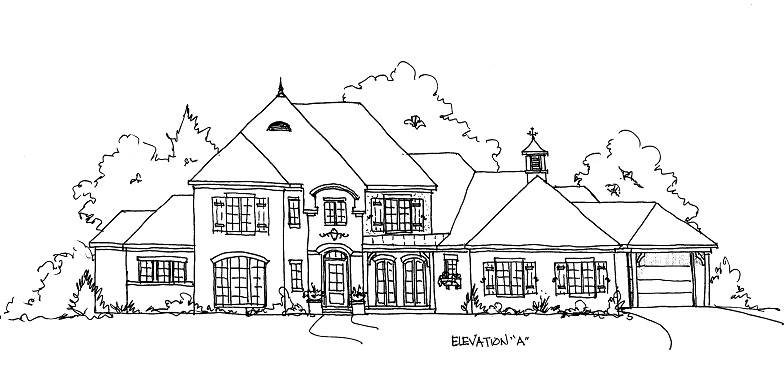

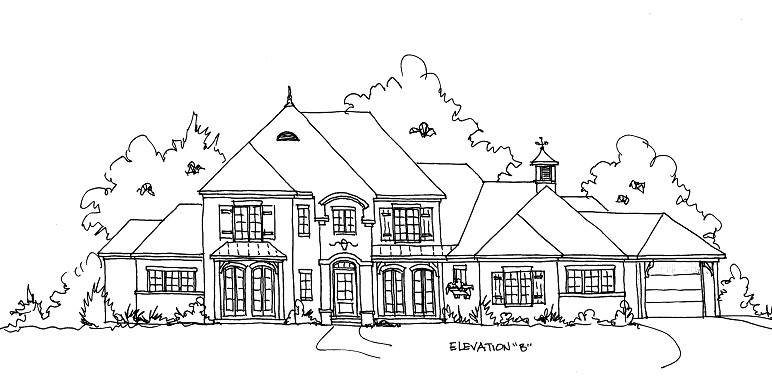

ELEVATION A ELEVATION B ELEVATION C Rear Elevation 1st Floor 2nd Floor
© copyright by designer

Plan: 36-27 Oakcrest

Plan Specification
Total Square Footage: 3,594
Main Level: 2,650
Second Level: 944
Bedrooms: 4
Baths: 4 Half: 0
Garages: 3
Width/Depth: 111 ft / 83 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

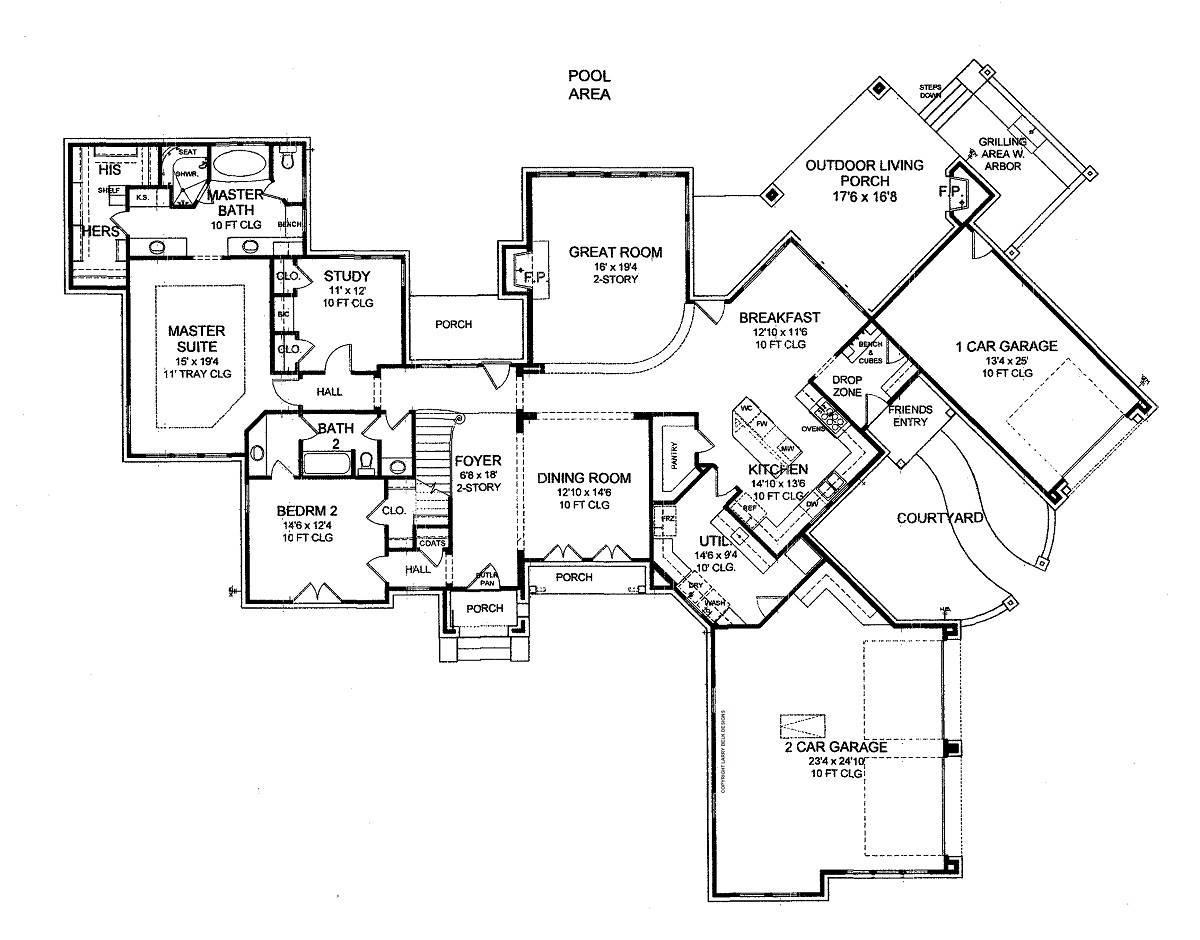

1st Floor:
1st Floor
© copyright by designer

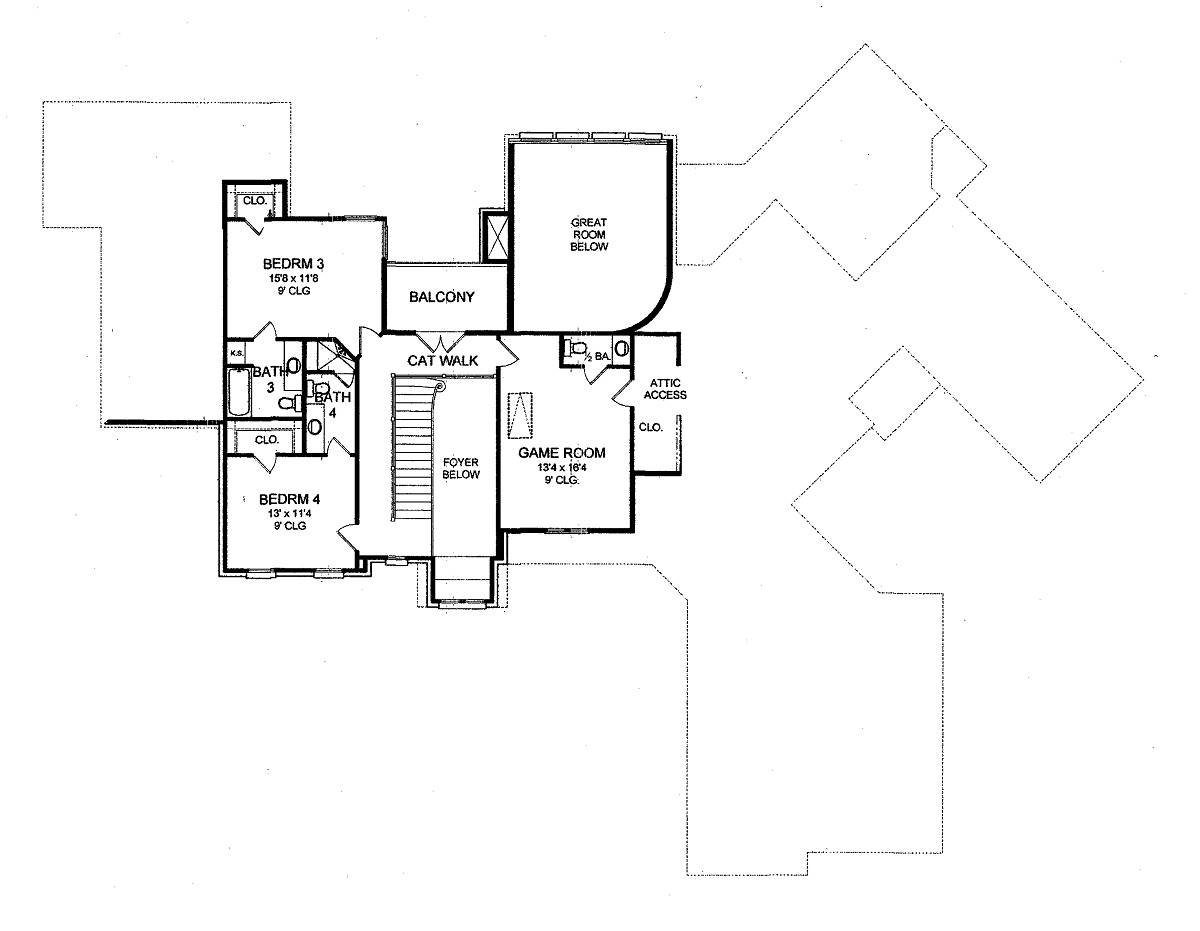

2nd Floor:
2nd Floor
Add to Favorites
Purchase Plans
House Plan Pricing
$1,995.00
$2,995.00
Foundation Options
$0.00
$450.00
$650.00
Additional Plan Options
$400.00
Plan Details
General House Information
2
Number of Stories:
111' 4"
Width:
83' 10"
Depth:
Single
Dwelling Number:
Exterior Style
Luxury
Mountain
OtherCustom
Contemporary
Country
European
French Country
Southern
Traditional
Number of Rooms
4
Bedrooms:
4
Full Baths:
Finished Square Footage
2,650 Sq. Ft.
Main Level:
944 Sq. Ft.
Upper Level:
3,594 Sq. Ft.
Total:
Unfinished Square Footage
967 Sq. Ft.
Garage:
601 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Side
Garage Location:
3
Garage Size:
Attached
Feature:
Side-entry
Feature:
With Living Space
Feature:
Key Features
• Double Vanity Sink
• Guest Suite
• Master Bdrm Main Floor
• Separate Tub and Shower
• Walk-in Closet
• Courtyard
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Outdoor Kitchen
• Outdoor Living Space
• Rear Porch
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Dining Room
• Fireplace
• Foyer
• Great Room
• Laundry 1st Fl
• Mud Room
• Open Floor Plan
• Rec Room
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• U-Shaped
• Walk-in Pantry
• Suited for corner lot
• Suited for view lot
