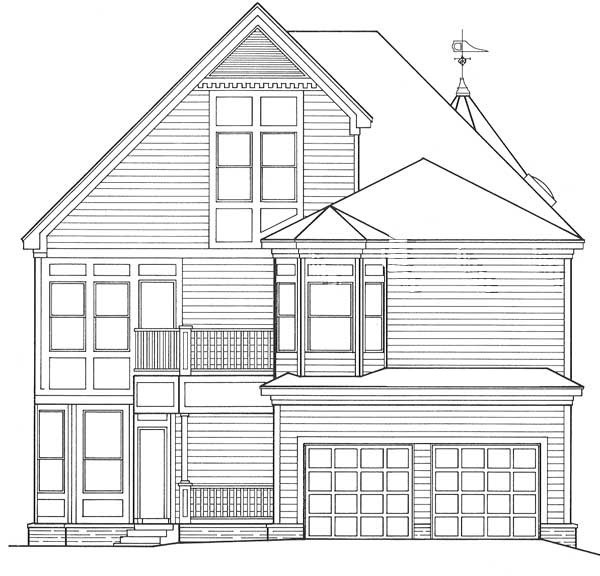

Front Rendering Rear Rendering First Floor Plan Second Floor Plan Third Floor Plan
© copyright by designer

Plan: 32-02 Harbor Cove

Plan Specification
Total Square Footage: 3,435
Main Level: 1,329
Second Level: 1,917
Second Level: 189
Bonus: 156
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 40 ft / 62 ft
Foundation: Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

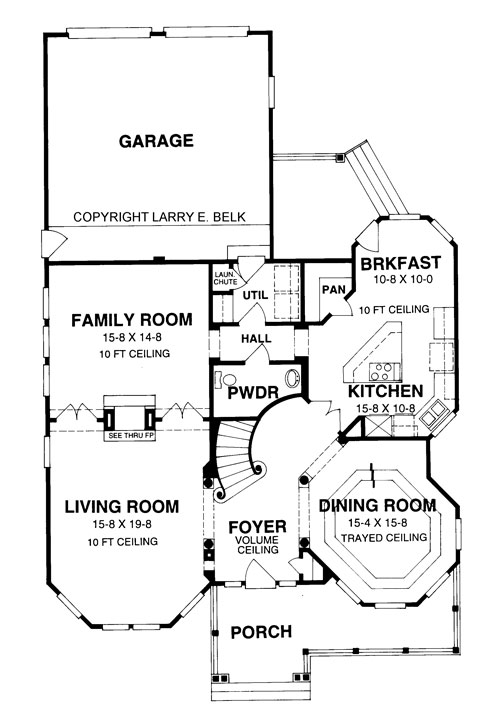

First Floor Plan:
First Floor Plan
© copyright by designer

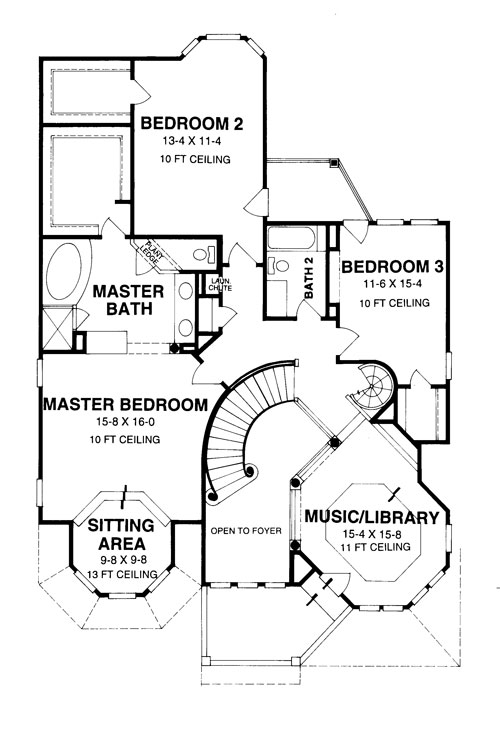

Second Floor Plan:
Second Floor Plan
© copyright by designer

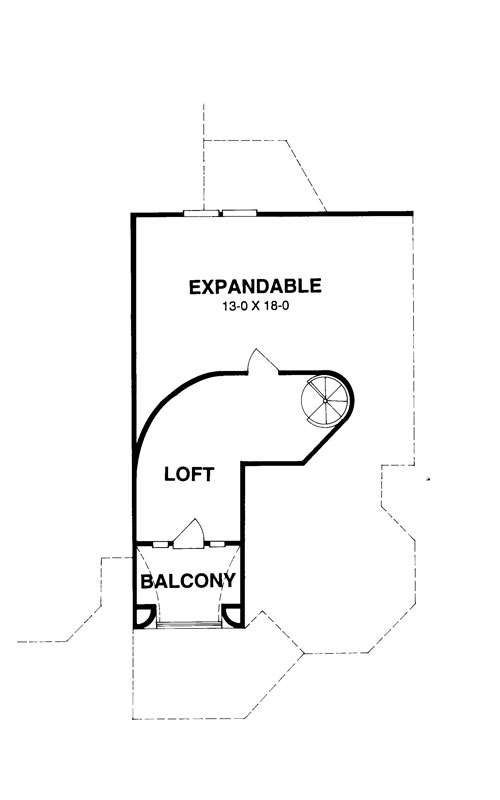

Third Floor Plan:
Third Floor Plan
House Plan Pricing
$1,250.00
$1,750.00
$2,495.00
$3,250.00
Foundation Options
$0.00
$400.00
$425.00
$475.00
Additional Plan Options
$375.00
$375.00
$250.00
$250.00
Note: CALL to confirm CAD file is available
Plan Details
General House Information
3
Number of Stories:
40' 4"
Width:
62' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Victorian
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,329 Sq. Ft.
Main Level:
1,917 Sq. Ft.
Upper Level:
189 Sq. Ft.
Third Level:
3,435 Sq. Ft.
Total:
Unfinished Square Footage
484 Sq. Ft.
Garage:
330 Sq. Ft.
Porch:
156 Sq. Ft.
Bonus Room:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
House And Ceiling Heights
10
First Floor Ceiling:
10
Second Floor Ceiling:
41' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Rear
Garage Location:
2
Garage Size:
Attached
Feature:
Rear-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Upstairs
• Separate Tub and Shower
• Sitting Area
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Deck
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Arches
• Bonus Room
• Dining Room
• Family Room
• Fireplace
• Formal LR
• Foyer
• Laundry 1st Fl
• Library/Media Rm
• Loft / Balcony
• Open Floor Plan
• Storage Space
• Unfinished Space
• Vaulted Ceilings
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
