Details | See Reverse | 3D | Modify | Back to Search

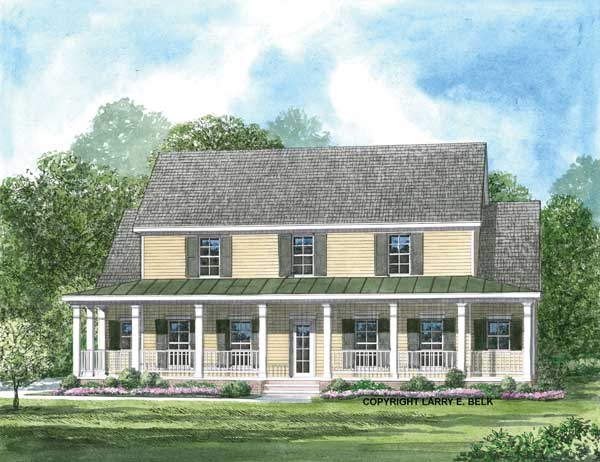

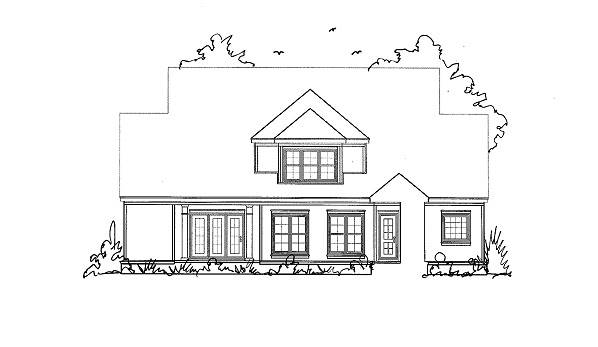

Front Rendering Rear Rendering First Floor Plan Second Floor Plan
© copyright by designer

Plan: 29-31 Chestnut

Plan Specification
Total Square Footage: 2,829
Main Level: 1,817
Second Level: 1,012
Bedrooms: 4
Baths: 3 Half: 1
Garages: 3
Width/Depth: 55 ft / 81 ft
Foundation: Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

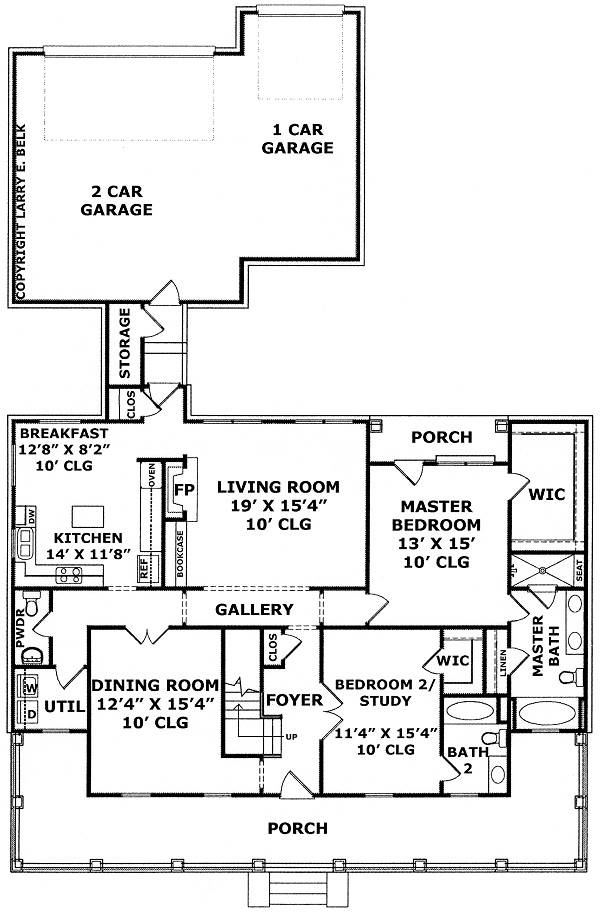

First Floor Plan:
First Floor Plan
© copyright by designer

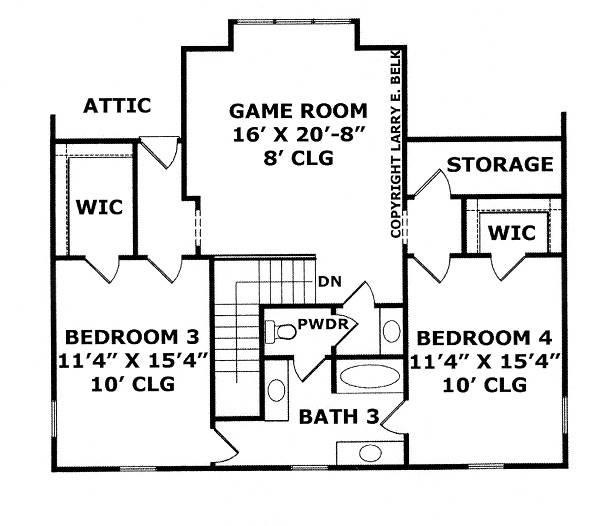

Second Floor Plan:
Second Floor Plan
House Plan Pricing
$1,150.00
$1,525.00
$1,995.00
$2,995.00
Foundation Options
$0.00
$375.00
$400.00
$425.00
Additional Plan Options
$325.00
$325.00
$250.00
$250.00
Plan Details
General House Information
2
Number of Stories:
55' 6"
Width:
81' 9"
Depth:
Single
Dwelling Number:
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
1,817 Sq. Ft.
Main Level:
1,012 Sq. Ft.
Upper Level:
2,829 Sq. Ft.
Total:
Unfinished Square Footage
822 Sq. Ft.
Garage:
533 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Rear
Garage Location:
3
Garage Size:
Rear-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Main Floor
• Separate Tub and Shower
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Wraparound Porch
• Basement
• Crawlspace
• Slab
• Dining Room
• Family Room
• Fireplace
• Foyer
• Home Office
• Laundry 1st Fl
• Rec Room
• Storage Space
• Kitchen Island
• Nook / Breakfast Area
