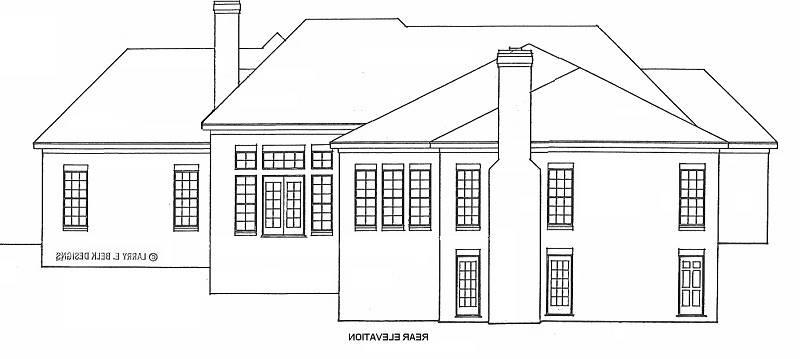

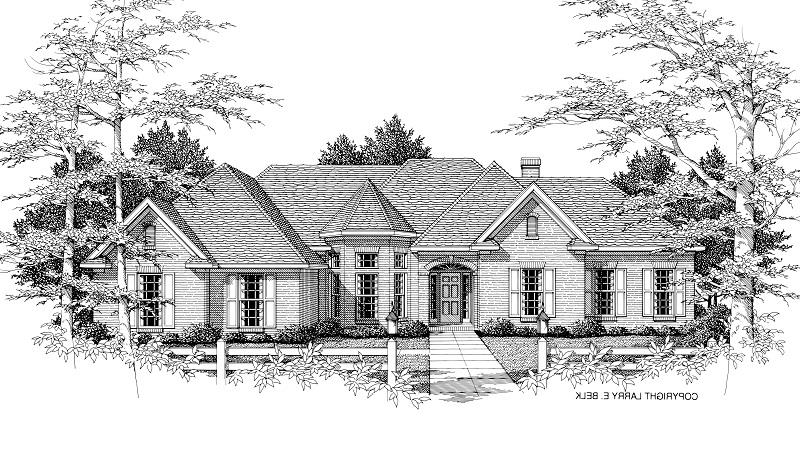

Front Rendering Rear Elevation First Floor Plan Basement Plan
© copyright by designer

Plan: 29-27 Johnsonville

Plan Specification
Total Square Footage: 2,910
Main Level: 2,910
Lower Level: 815
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 79 ft / 69 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

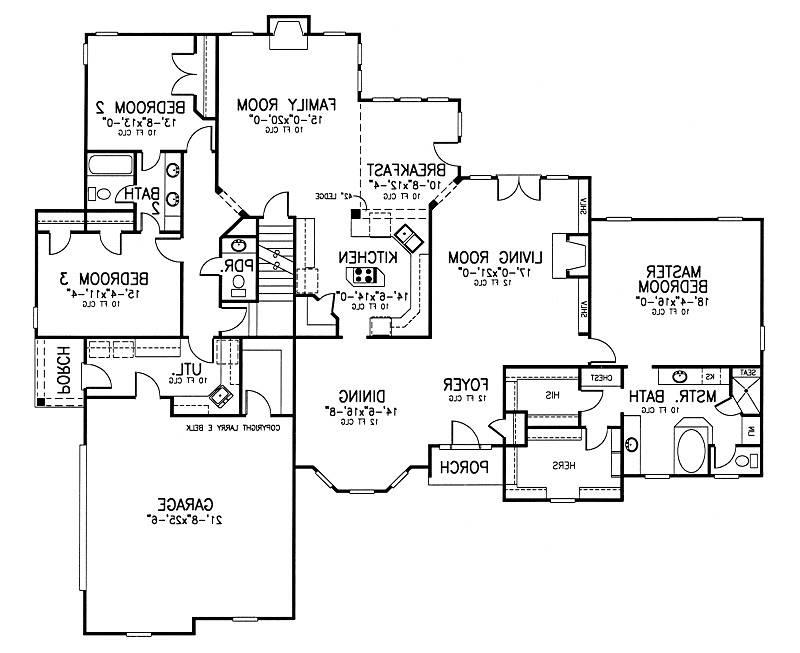

First Floor Plan:
First Floor Plan
© copyright by designer

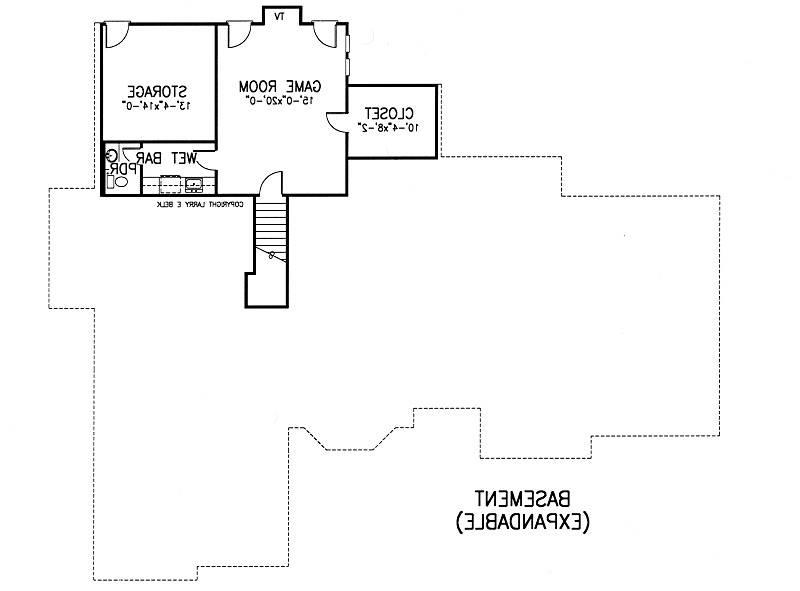

Basement Plan:
Basement Plan
Add to Favorites
Purchase Plans
House Plan Pricing
$975.00
Foundation Options
$0.00
$350.00
$400.00
Plan Details
General House Information
1
Number of Stories:
79' 8"
Width:
69' 6"
Depth:
Single
Dwelling Number:
Exterior Style
Ranch
Southern
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,910 Sq. Ft.
Main Level:
815 Sq. Ft.
Lower Level:
2,910 Sq. Ft.
Total:
Unfinished Square Footage
618 Sq. Ft.
Garage:
81 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Front
Garage Location:
2
Garage Size:
Attached
Feature:
Front-entry
Feature:
Side-entry
Feature:
Key Features
• Double Vanity Sink
• His and Hers Master Closets
• Master Bdrm Main Floor
• Separate Tub and Shower
• Walk-in Closet
• Covered Front Porch
• Front Porch
• Basement
• Crawlspace
• Slab
• Dining Room
• Family Room
• Fireplace
• Formal LR
• Foyer
• Laundry 1st Fl
• Open Floor Plan
• Rec Room
• Storage Space
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
