Plan: 28-42 The Scottsdale-L

Plan Specification
Total Square Footage: 2,837
Main Level: 2,837
Lower Level: 830
Bedrooms: 4
Baths: 3 Half: 1
Garages: 3
Width/Depth: 125 ft / 76 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
1st Floor:
1st Floor
© copyright by designer

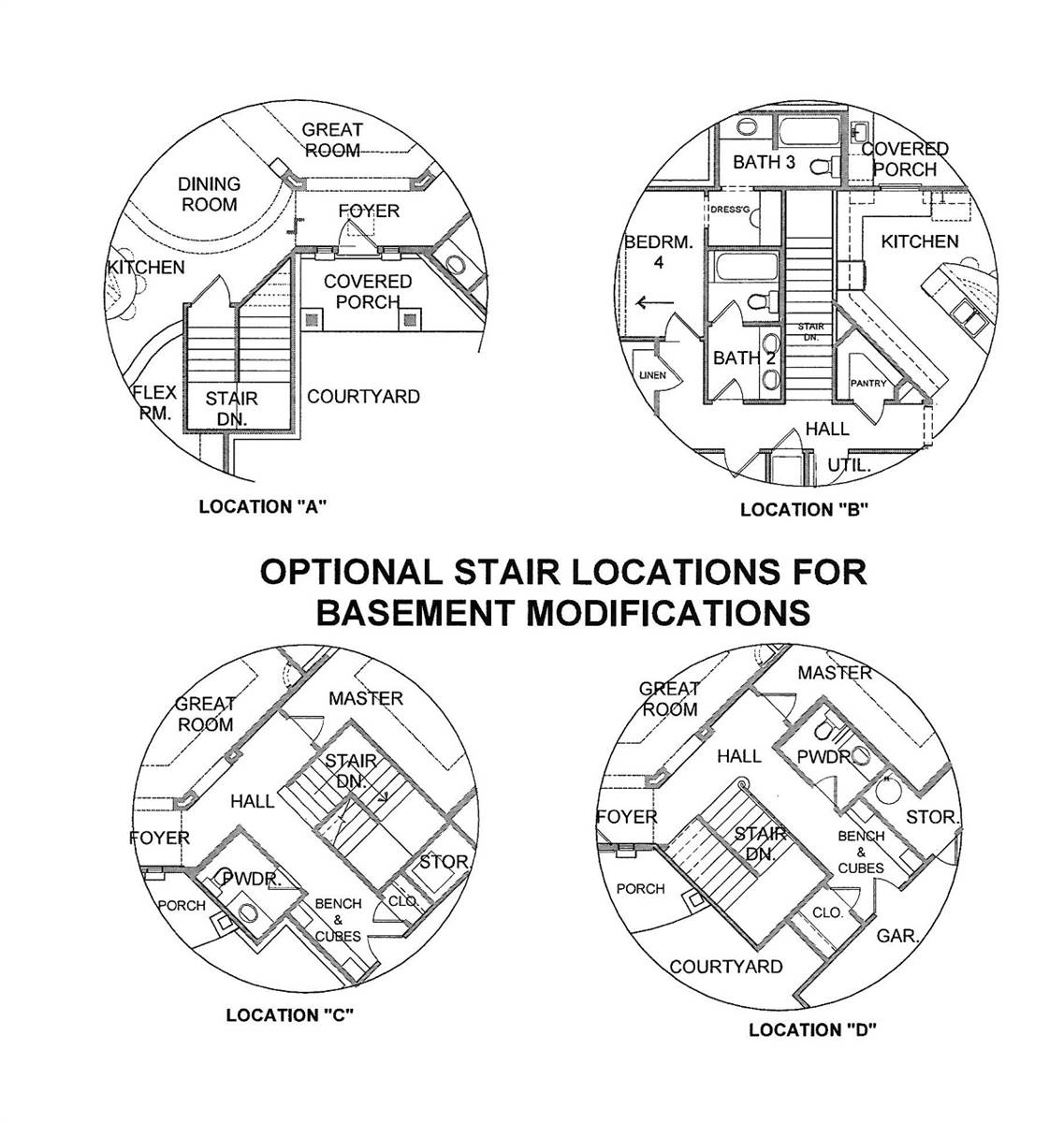

Staircase Options:
Staircase Options
Add to Favorites
Purchase Plans
House Plan Pricing
$1,895.00
$2,995.00
Foundation Options
$0.00
$450.00
$650.00
Additional Plan Options
$400.00
Plan Details
General House Information
1
Number of Stories:
125'
Width:
76'
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Florida
OtherCustom
European
Mediterranean
Spanish
Tuscan
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
2,837 Sq. Ft.
Main Level:
830 Sq. Ft.
Lower Level:
2,837 Sq. Ft.
Total:
Unfinished Square Footage
1103 Sq. Ft.
Garage:
830 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
11
First Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4:12
Primary:
Insulation (R)
GARAGE
Rear
Garage Location:
3
Garage Size:
Attached
Feature:
Rear-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Main Floor
• Split Bedrooms
• Walk-in Closet
• Courtyard
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Outdoor Kitchen
• Rear Porch
• Wraparound Porch
• Basement
• Crawlspace
• Bonus Room
• Dining Room
• Fireplace
• Foyer
• Great Room
• Laundry 1st Fl
• Library/Media Rm
• Mud Room
• Open Floor Plan
• Storage Space
• Vaulted Ceilings
• Vaulted Foyer
• Vaulted Great Room/Living
• Vaulted Master
• Workshop
• Kitchen Island
• Pantry
• Peninsula / Eating Bar
• Walk-in Pantry
