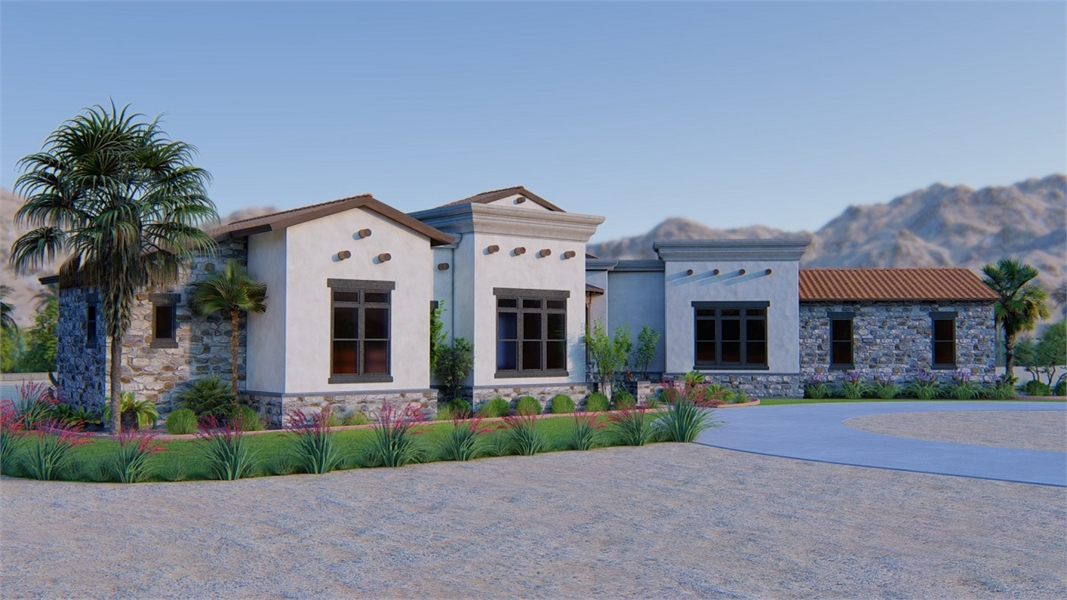

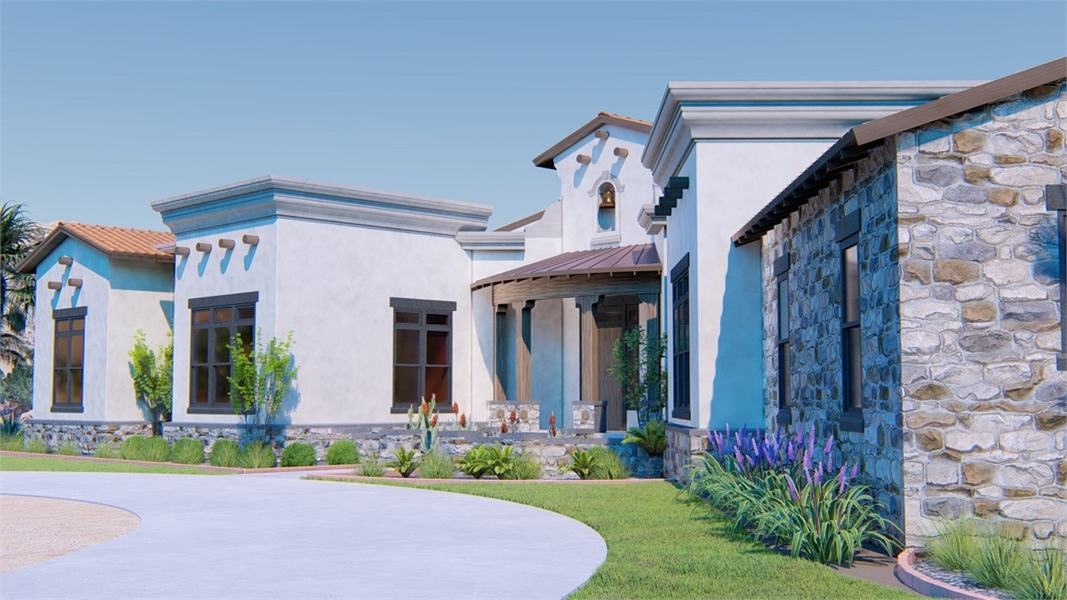

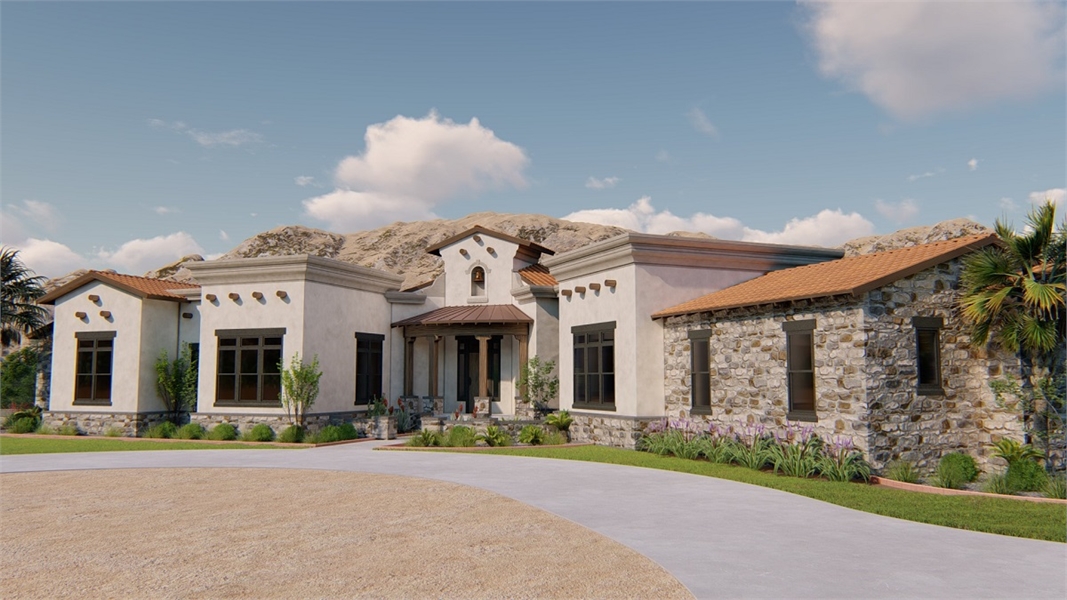

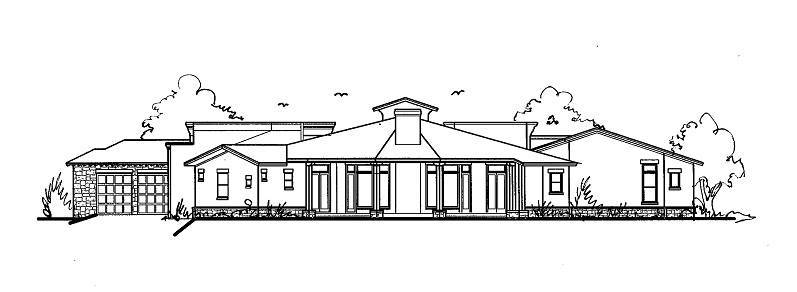

Gorgeous Front View Angled Front View Another Front View Another Front View Rear View 1st Floor Staircase Options
© copyright by designer

Plan: 27-51 THE SCOTTSDALE - R

Plan Specification
Total Square Footage: 2,789
Main Level: 2,789
Lower Level: 1,966
Bedrooms: 4
Baths: 3 Half: 1
Garages: 3
Width/Depth: 125 ft / 76 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
1st Floor:
1st Floor
© copyright by designer
Staircase Options:
Staircase Options
Similar plans: 24-32, 27-64CP, 27-64CP
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs NOW!™ $1,895.00
$2,995.00
Foundation Options
PDFs NOW!™ available $0.00
$450.00
$650.00
Additional Plan Options
$400.00
Plan Details
General House Information
1
Number of Stories:
125'
Width:
76'
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
OtherCustom
Texas
Contemporary
European
Mediterranean
Ranch
Spanish
Tuscan
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
2,789 Sq. Ft.
Main Level:
1,966 Sq. Ft.
Lower Level:
2,789 Sq. Ft.
Total:
Unfinished Square Footage
1106 Sq. Ft.
Garage:
860 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
GARAGE
Front
Garage Location:
3
Garage Size:
Attached
Feature:
Rear-entry
Feature:
Key Features
• Double Vanity Sink
• Guest Suite
• His and Hers Master Closets
• Master Bdrm Main Floor
• Split Bedrooms
• Walk-in Closet
• Courtyard
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Outdoor Kitchen
• Outdoor Living Space
• Rear Porch
• Wraparound Porch
• Basement
• Crawlspace
• 2 Story Volume
• Dining Room
• Fireplace
• Foyer
• Great Room
• Home Office
• Laundry 1st Fl
• Library/Media Rm
• Mud Room
• Open Floor Plan
• Storage Space
• Kitchen Island
• Pantry
• Peninsula / Eating Bar
• Walk-in Pantry
• Suited for view lot
