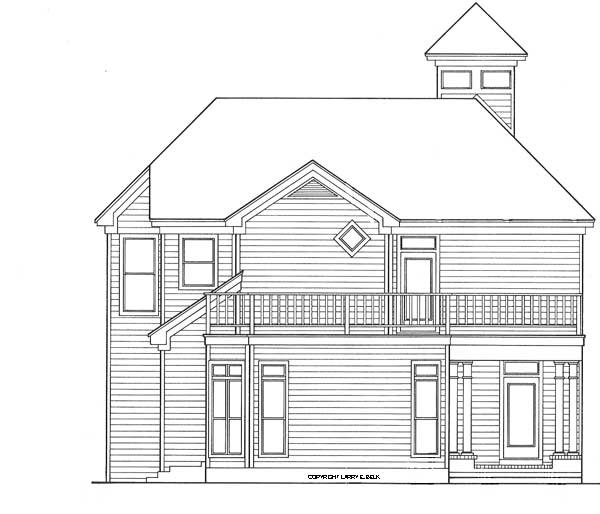

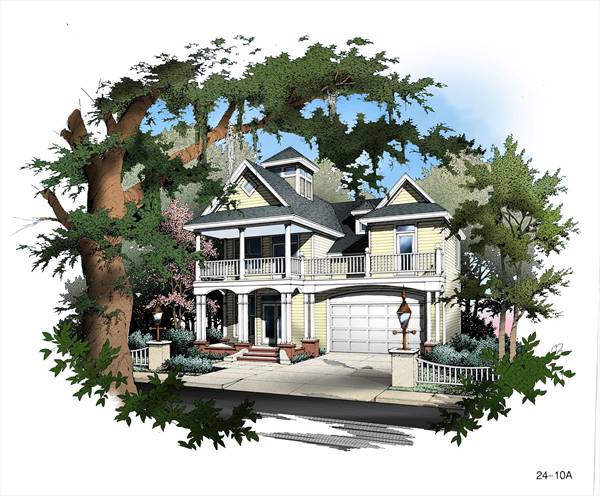

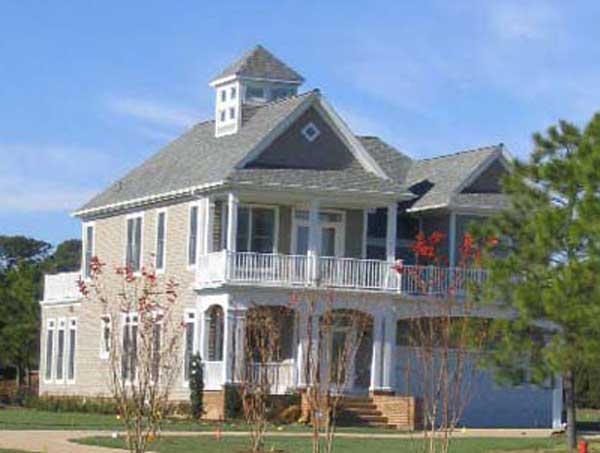

Front Rendering Front Photo Rear Rendering First Floor Plan Second Floor Plan
© copyright by designer

Plan: 24-10 Bay View

Plan Specification
Total Square Footage: 2,498
Main Level: 1,530
Second Level: 968
Bonus: 326
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 40 ft / 66 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:

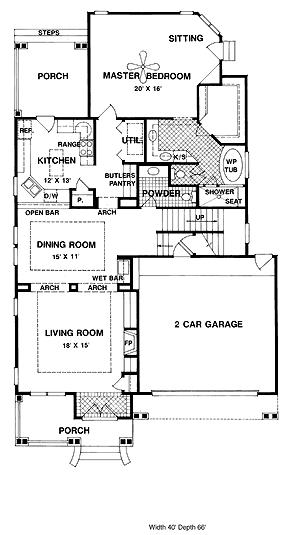

First Floor Plan
© copyright by designer
Second Floor Plan:

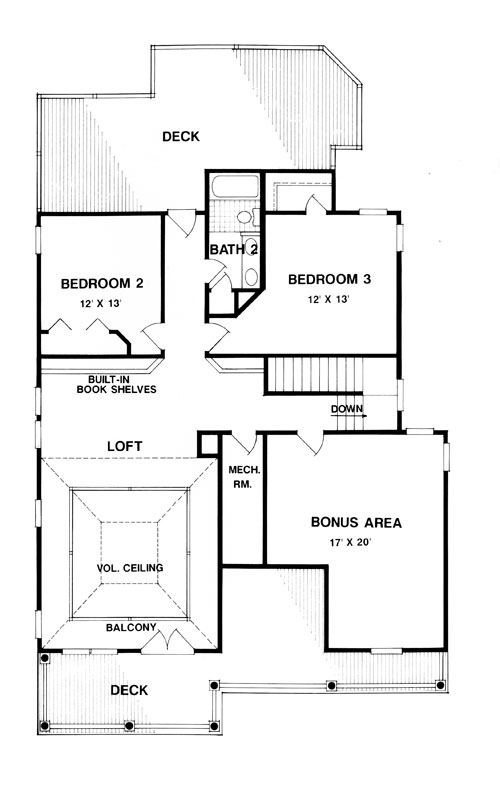

Second Floor Plan
Similar plans: 24-25, 25-07C
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs NOW!™ $1,150.00
Foundation Options
$0.00
$350.00
$400.00
Plan Details
General House Information
2
Number of Stories:
40' 0"
Width:
66' 4"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Vacation
Cottage
French Country
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,530 Sq. Ft.
Main Level:
968 Sq. Ft.
Upper Level:
2,498 Sq. Ft.
Total:
Unfinished Square Footage
448 Sq. Ft.
Garage:
382 Sq. Ft.
Porch:
326 Sq. Ft.
Bonus Room:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
40' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
12/12
Secondary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Front
Garage Location:
2
Garage Size:
Attached
Feature:
Front-entry
Feature:
Key Features
• Master Bdrm Main Floor
• Separate Tub and Shower
• Sitting Area
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Deck
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• Arches
• Bonus Room
• Dining Room
• Family Room
• Fireplace
• Laundry 1st Fl
• Loft / Balcony
• Open Floor Plan
• Vaulted Ceilings
• Butler's Pantry
• Kitchen Island
• Walk-in Pantry
• Suited for narrow lot
