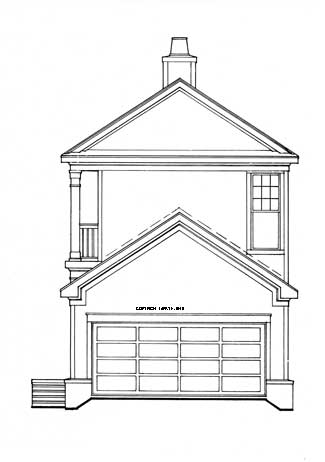

See all 3 photos and rear view
© copyright by designer
Plan: 19-19B Ainsley
Plan Specification
Total Square Footage:
1,940
Main Level:
911
Second Level:
1,029
Bedrooms:
3
Baths:
2 Half: 1
Garages:
2
Width/Depth:
20 ft / 75 ft
Foundation:
Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

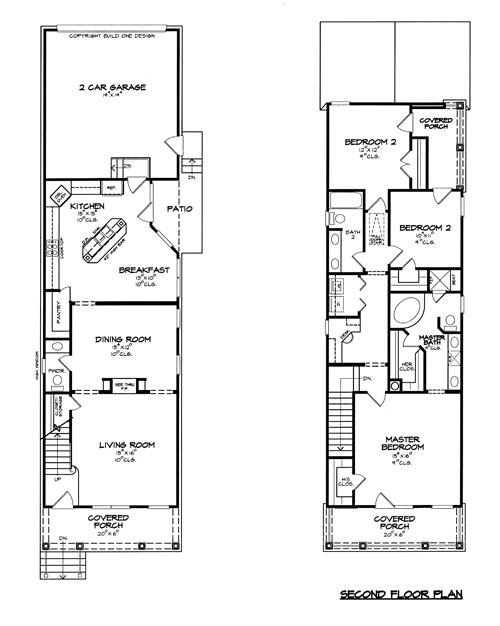

Floor Plan:
Similar plans:
19-23
,
19-15
Purchase Plans
House Plan Pricing
PDF Bid Set
$950.00
PDF
$1,250.00
Multi-Use PDF
$1,750.00
CAD FILE Plus PDF
$2,500.00
More details about our plan packages
Foundation Options
Slab
$0.00
Crawl Space
$350.00
Daylight Basement
$375.00
Basement
$400.00
Additional Plan Options
Full Reverse
$300.00
2x6 Exterior Walls
$300.00
Add 1 Garage Bay
$250.00
Remove 1 Garage Bay
$250.00
Plan Details
General House Information
2
Number of Stories:
20' 10"
Width:
75' 10"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
Rectangular
Vacation
Beach
Cottage
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
911 Sq. Ft.
Main Level:
1,029 Sq. Ft.
Upper Level:
1,940 Sq. Ft.
Total:
Unfinished Square Footage
400 Sq. Ft.
Garage:
314 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
27' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Rear
Garage Location:
2
Garage Size:
Attached
Feature:
Rear-entry
Feature:
Key Features
• Double Vanity Sink
• His and Hers Master Closets
• Master Bdrm Upstairs
• Separate Tub and Shower
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• Dining Room
• Family Room
• Fireplace
• Laundry 2nd Fl
• Loft / Balcony
• Kitchen Island
• Peninsula / Eating Bar
• Walk-in Pantry
• Suited for narrow lot
Plan: 19-19B, 2 story, 1,940 total square footage
