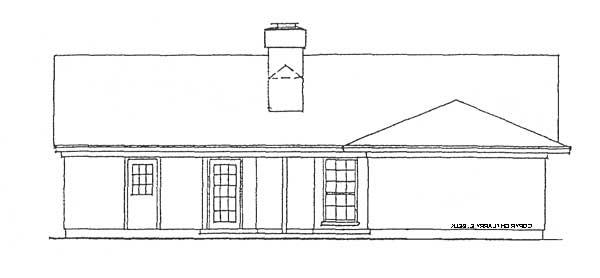

Front Rendering Rear Rendering Floor Plan
© copyright by designer

Plan: 17-09 Collierville

Plan Specification
Total Square Footage: 1,772
Main Level: 1,772
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 47 ft / 50 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

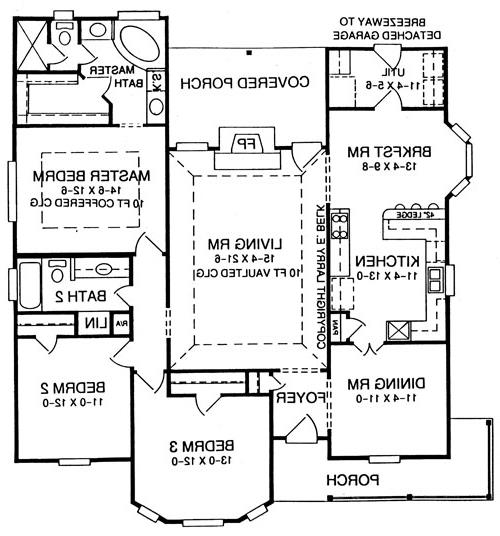

Floor Plan:
Floor Plan
Similar plans: 17-07, 18-05
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs NOW!™ $870.00
Foundation Options
$0.00
$350.00
$400.00
Plan Details
General House Information
1
Number of Stories:
47' 2"
Width:
50' 2"
Depth:
Single
Dwelling Number:
Exterior Style
Budget
Builders
Old House Classics
Farmhouse
Ranch
Victorian
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,772 Sq. Ft.
Main Level:
1,772 Sq. Ft.
Total:
Unfinished Square Footage
248 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
18' 4"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
5/12
Primary:
12/12
Secondary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Side
Garage Location:
2
Garage Size:
Detached
Feature:
Key Features
• Master Bdrm Main Floor
• Separate Tub and Shower
• Walk-in Closet
• Breezeway
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• Dining Room
• Family Room
• Fireplace
• Foyer
• Laundry 1st Fl
• Vaulted Ceilings
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Suited for narrow lot
