Details |  Save | See Reverse | 3D | Modify | Back to Search

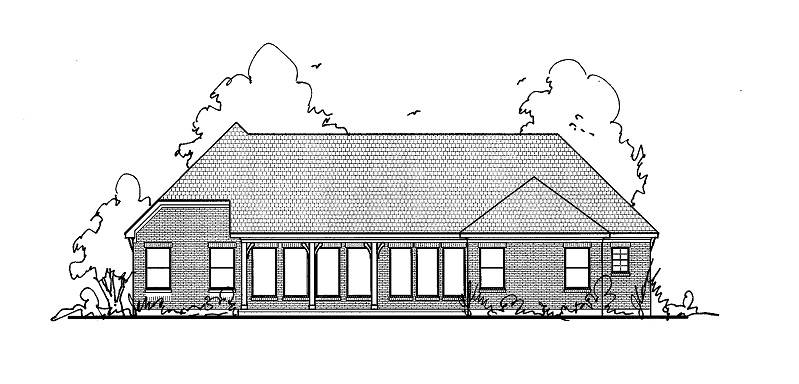

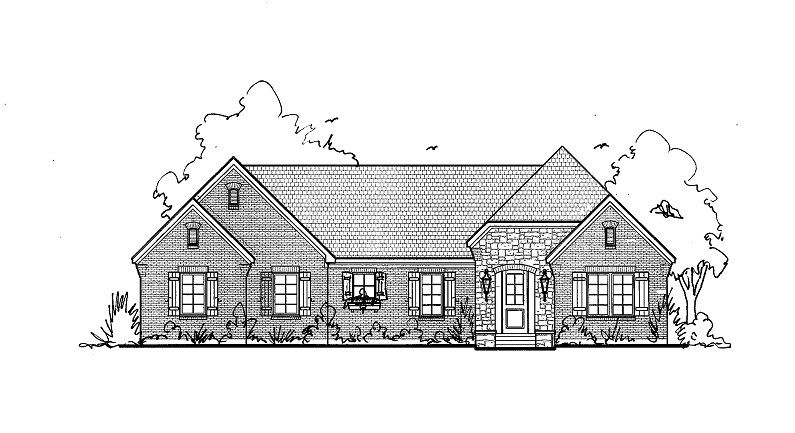

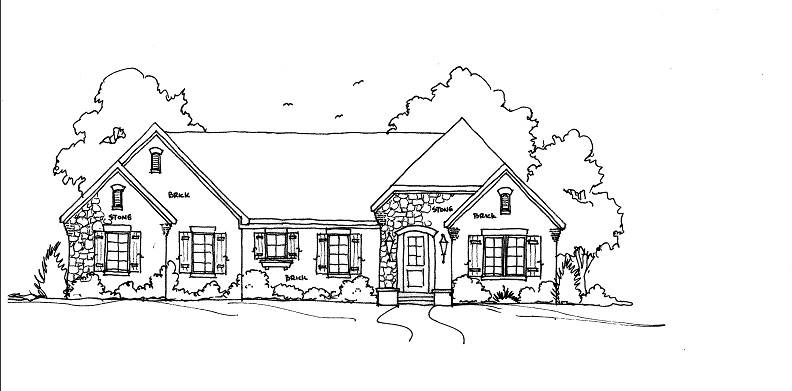

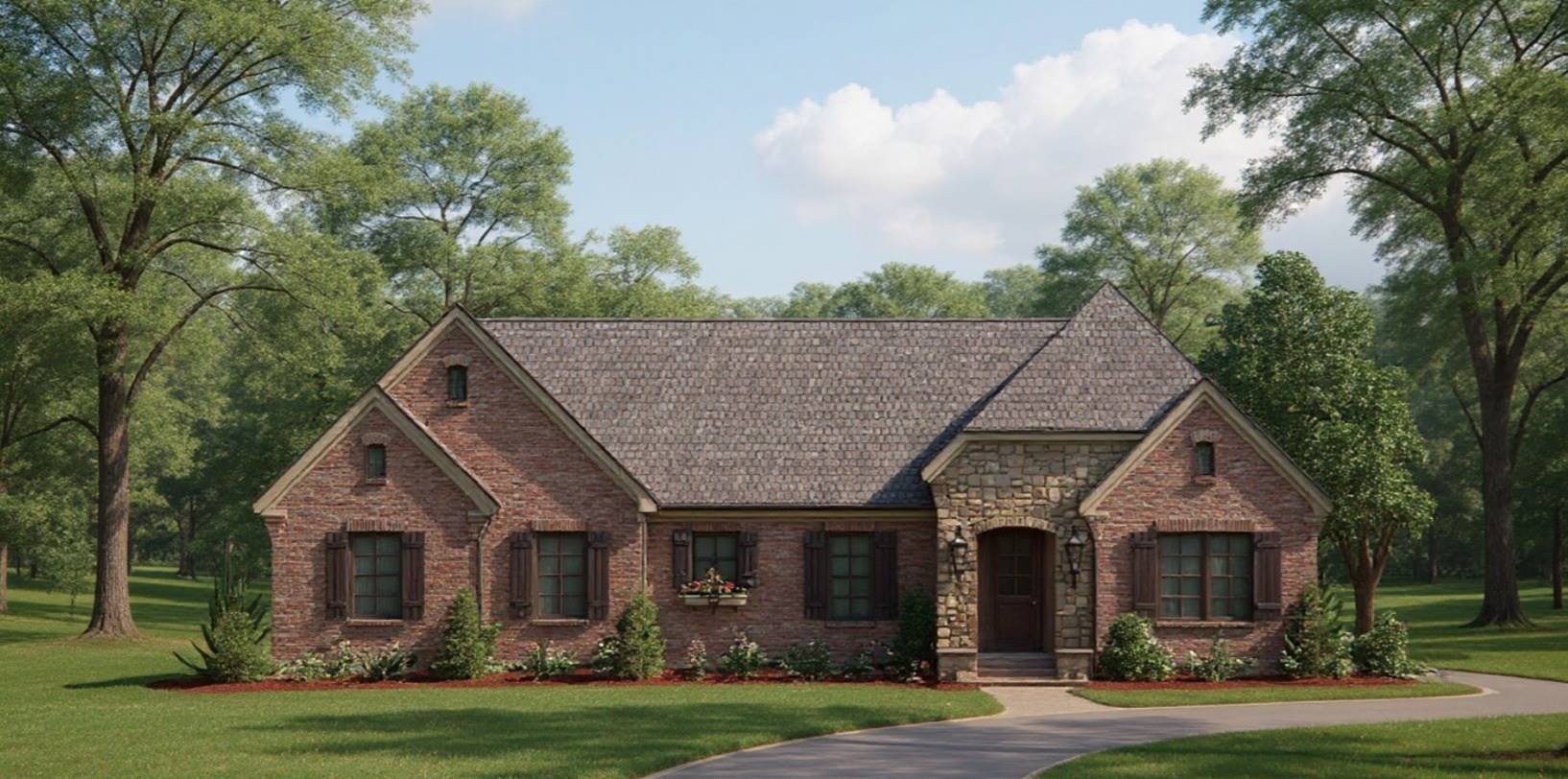

Front Rendering Rear Elevation FRONT SKETCH First Floor Plan
© copyright by designer

Plan: 16-22

Plan Specification
Total Square Footage: 1,590
Main Level: 1,590
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 64 ft / 49 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

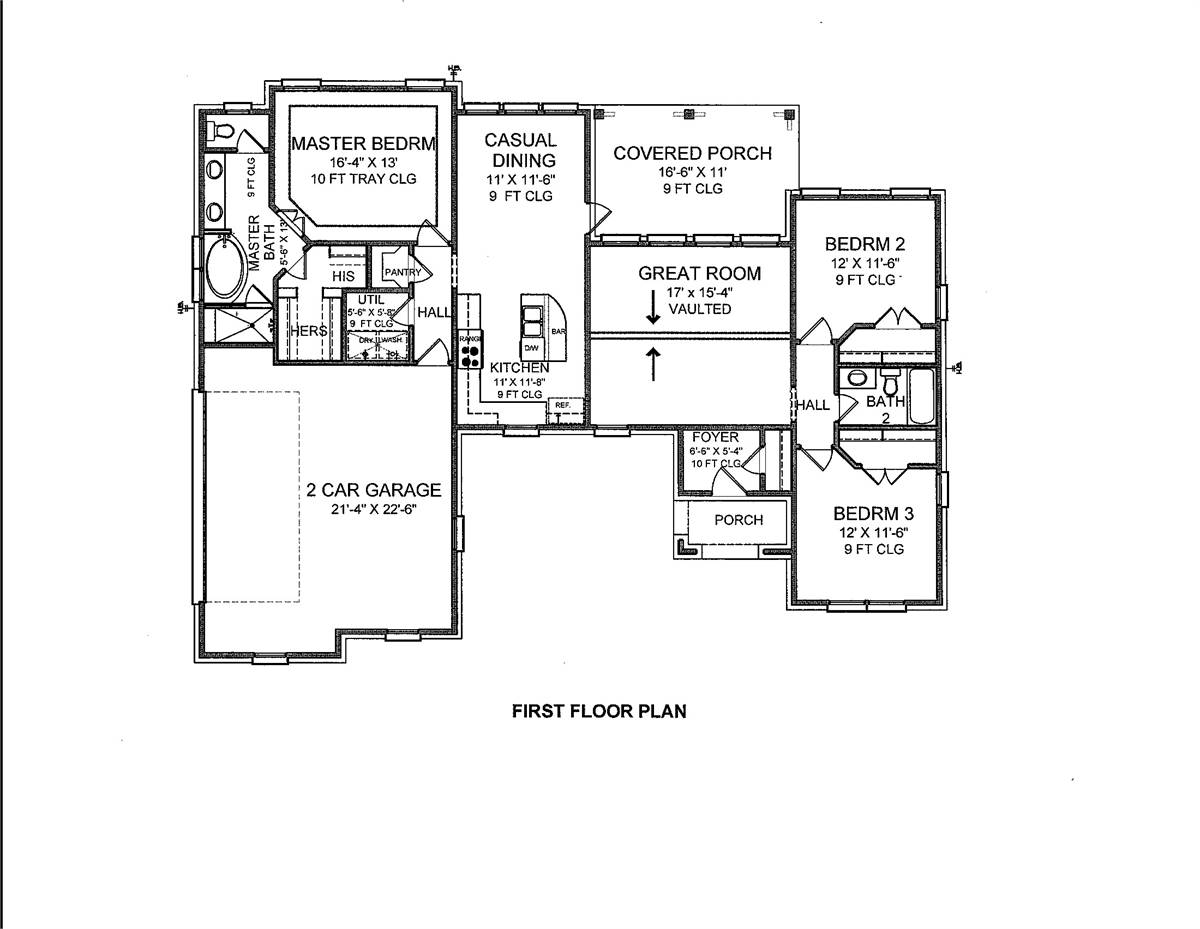

First Floor Plan:
First Floor Plan
Add to Favorites
Purchase Plans
House Plan Pricing
$975.00
$1,950.00
Foundation Options
$0.00
$350.00
$400.00
Additional Plan Options
$300.00
Plan Details
General House Information
1
Number of Stories:
64' 3"
Width:
49' 9"
Depth:
Single
Dwelling Number:
Exterior Style
OtherCustom
French Country
Ranch
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,590 Sq. Ft.
Main Level:
1,590 Sq. Ft.
Total:
Unfinished Square Footage
568 Sq. Ft.
Garage:
243 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Side
Garage Location:
2
Garage Size:
Attached
Feature:
Side-entry
Feature:
Key Features
• Double Vanity Sink
• His and Hers Master Closets
• Master Bdrm Main Floor
• Separate Tub and Shower
• Split Bedrooms
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• Foyer
• Great Room
• Laundry 1st Fl
• Open Floor Plan
• Vaulted Ceilings
• Kitchen Island
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
