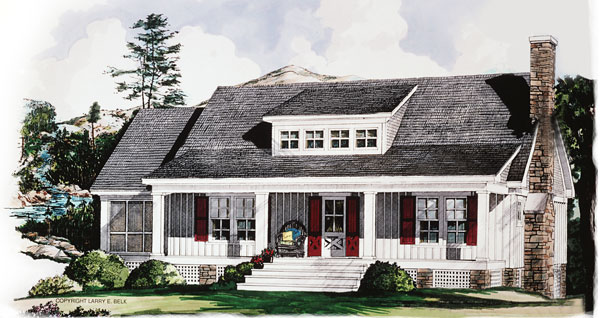

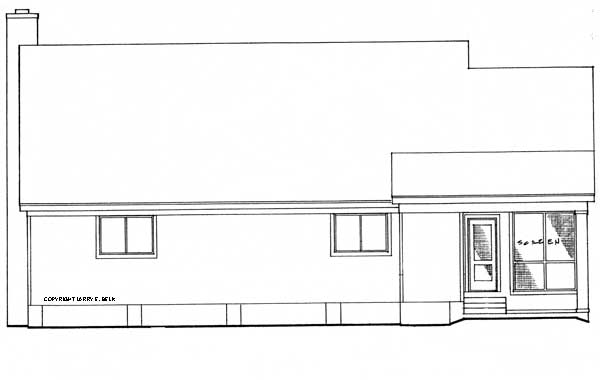

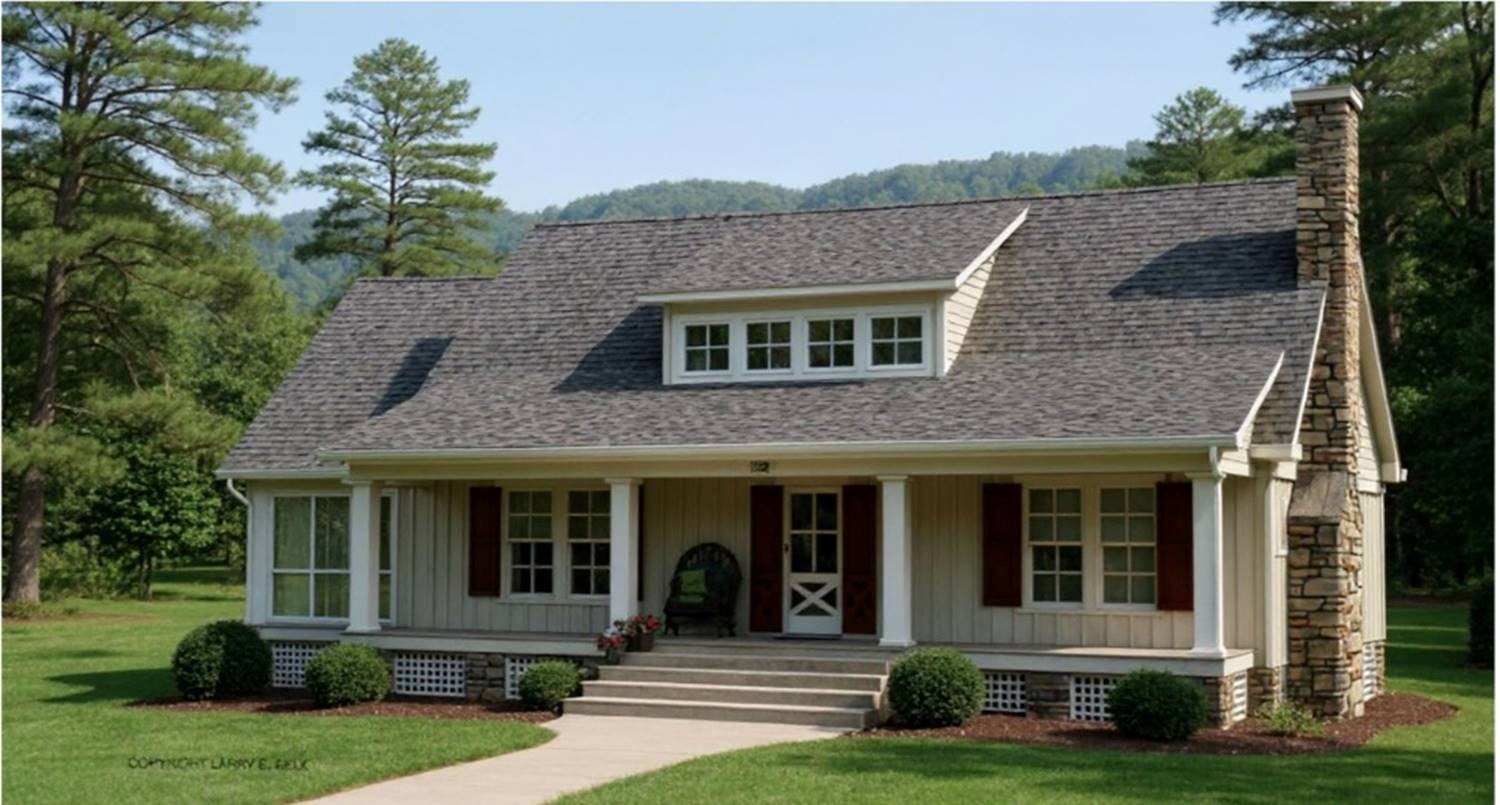

Front Rendering Rear Rendering Loft (optional) Floor Plan
© copyright by designer

Plan: 16-19 Rolling Timber

Plan Specification
Total Square Footage: 1,404
Main Level: 1,404
Bonus: 256
Bedrooms: 2
Baths: 2 Half: 0
Garages: 1
Width/Depth: 54 ft / 46 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer

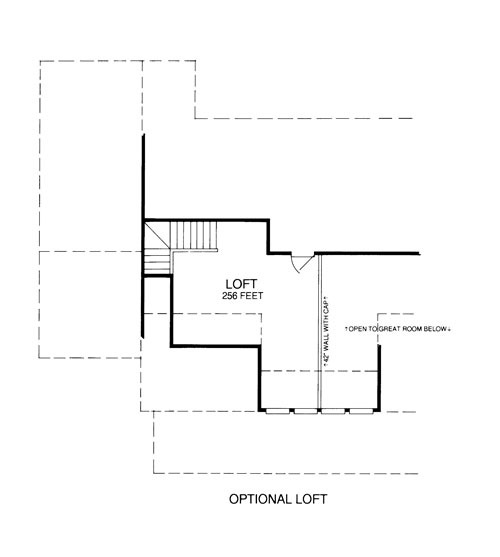

Loft (optional):
Loft (optional)
© copyright by designer

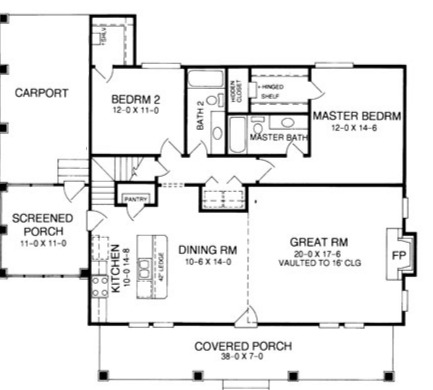

Floor Plan:
Floor Plan
Similar plans: 14-02, 15-05
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs NOW!™ $935.00
Foundation Options
$0.00
$350.00
$400.00
Additional Plan Options
$55.00
$85.00
Plan Details
General House Information
1
Number of Stories:
54' 7"
Width:
46' 6"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Cottage
Country
Craftsman
Lake
Number of Rooms
2
Bedrooms:
2
Full Baths:
Finished Square Footage
1,404 Sq. Ft.
Main Level:
1,404 Sq. Ft.
Total:
Unfinished Square Footage
406 Sq. Ft.
Porch:
256 Sq. Ft.
Bonus Room:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
22' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
4/12
Secondary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Rear
Garage Location:
1
Garage Size:
Attached
Feature:
Carport
Feature:
Rear-entry
Feature:
Key Features
• Master Bdrm Main Floor
• Walk-in Closet
• Covered Front Porch
• Front Porch
• Screened Porch/Sunroom
• Slab
• Bonus Room
• Dining Room
• Fireplace
• Great Room
• Laundry 1st Fl
• Loft / Balcony
• Open Floor Plan
• Vaulted Ceilings
• Kitchen Island
• Peninsula / Eating Bar
• Walk-in Pantry
