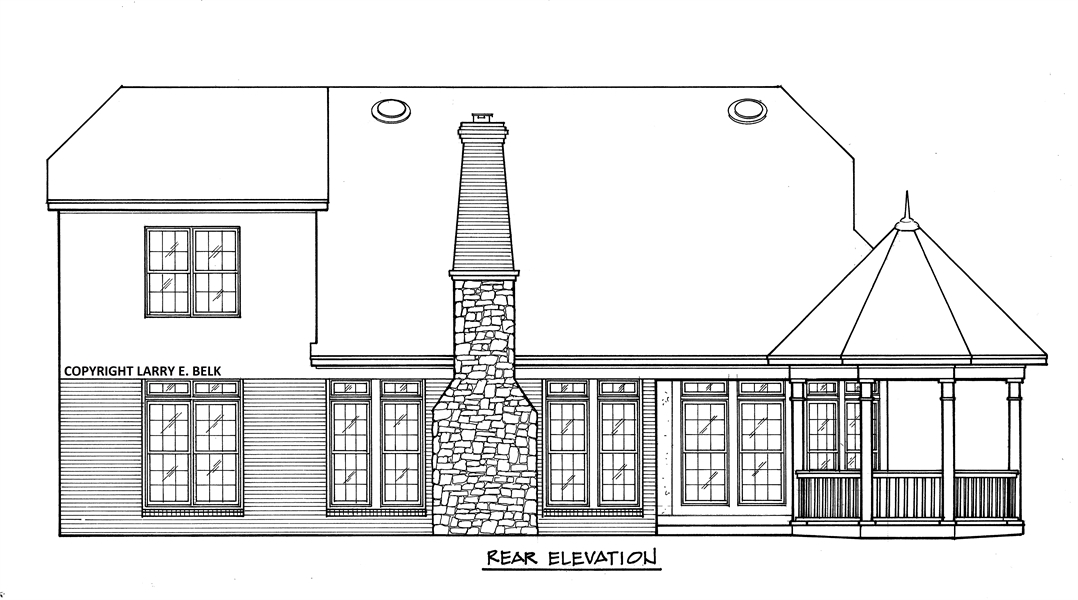

Front Rendering Rear Elevation First Floor Plan Second Floor Plan
© copyright by designer

Plan: 16-12 Maple Way

Plan Specification
Total Square Footage: 1,654
Main Level: 1,276
Second Level: 378
Bedrooms: 2
Baths: 2 Half: 1
Garages: 2
Width/Depth: 54 ft / 53 ft
Foundation: Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

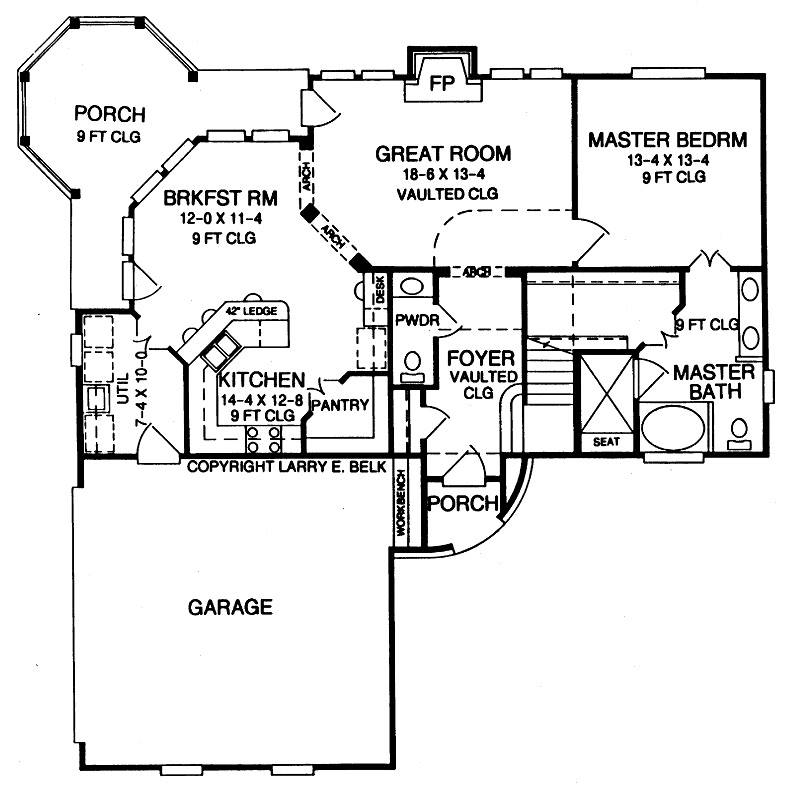

First Floor Plan:
First Floor Plan
© copyright by designer

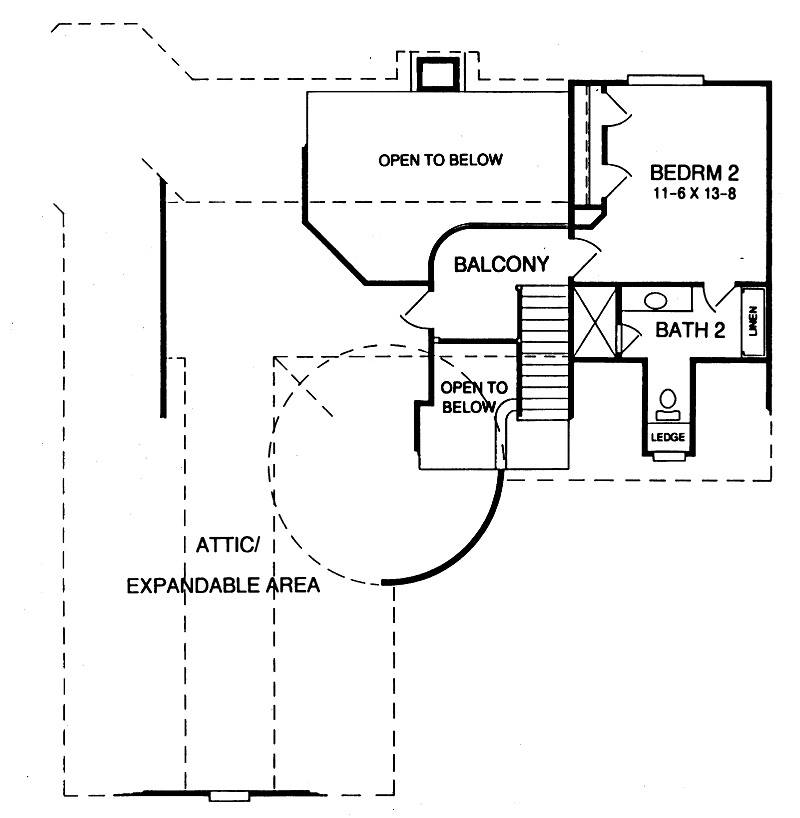

Second Floor Plan:
Second Floor Plan
House Plan Pricing
$950.00
$1,250.00
$1,750.00
$2,500.00
Foundation Options
$0.00
$350.00
$375.00
$400.00
Additional Plan Options
$300.00
$300.00
$250.00
$250.00
Plan Details
General House Information
2
Number of Stories:
54' 4"
Width:
53' 10"
Depth:
Single
Dwelling Number:
Number of Rooms
2
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,276 Sq. Ft.
Main Level:
378 Sq. Ft.
Upper Level:
1,654 Sq. Ft.
Total:
Unfinished Square Footage
533 Sq. Ft.
Garage:
230 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Front
Garage Location:
2
Garage Size:
Attached
Feature:
Front-entry
Feature:
Side-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Main Floor
• Separate Tub and Shower
• Walk-in Closet
• Covered Front Porch
• Deck
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Arches
• Fireplace
• Foyer
• Great Room
• Laundry 1st Fl
• Loft / Balcony
• Open Floor Plan
• Unfinished Space
• Vaulted Ceilings
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Walk-in Pantry
