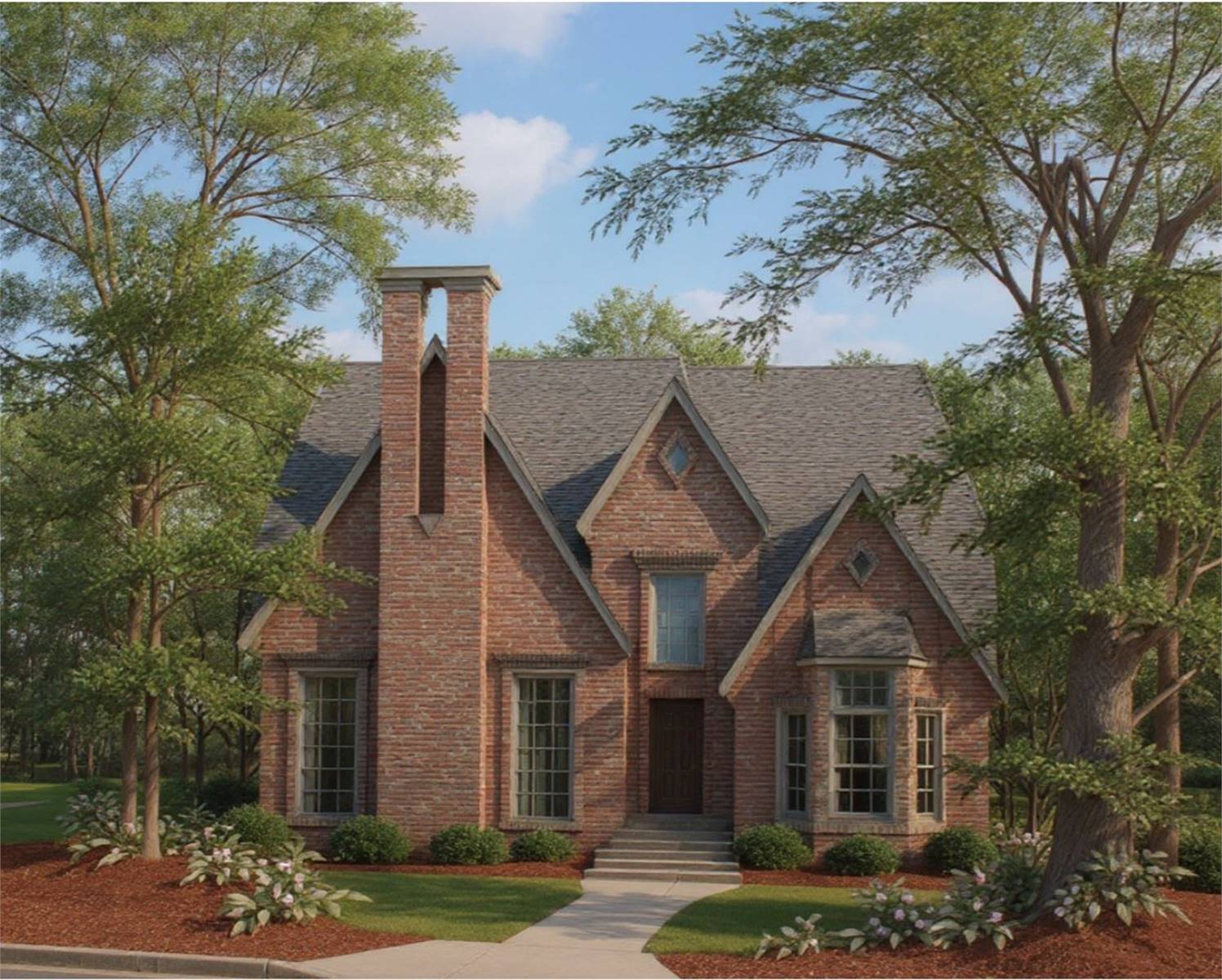

See all 3 photos and rear view
© copyright by designer

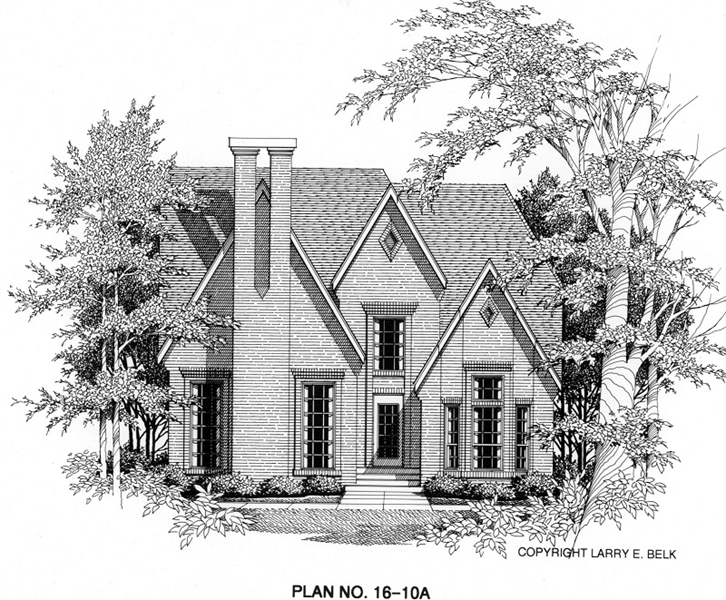

Plan: 16-10 Ivy Ridge
Plan Specification
Total Square Footage:
1,674
Main Level:
1,063
Second Level:
611
Bedrooms:
3
Baths:
3 Half: 1
Garages:
2
Width/Depth:
34 ft / 63 ft
Foundation:
Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

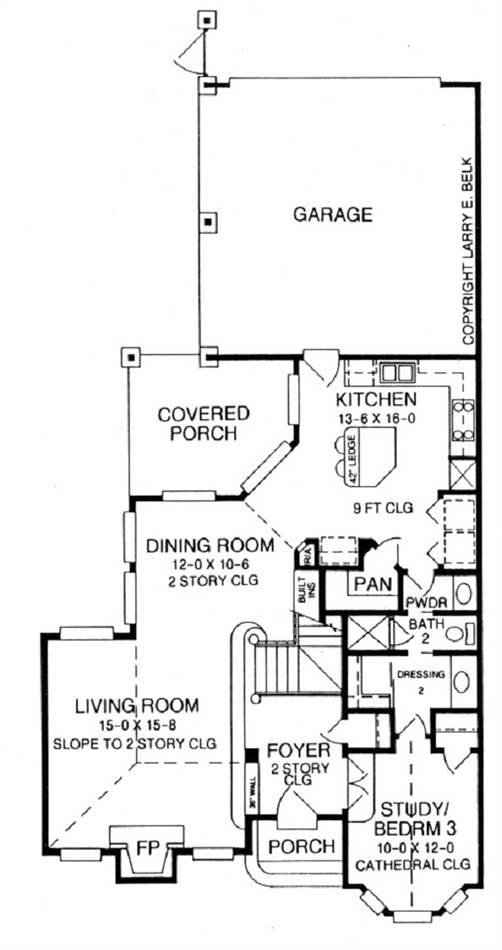

First Floor Plan:
© copyright by designer

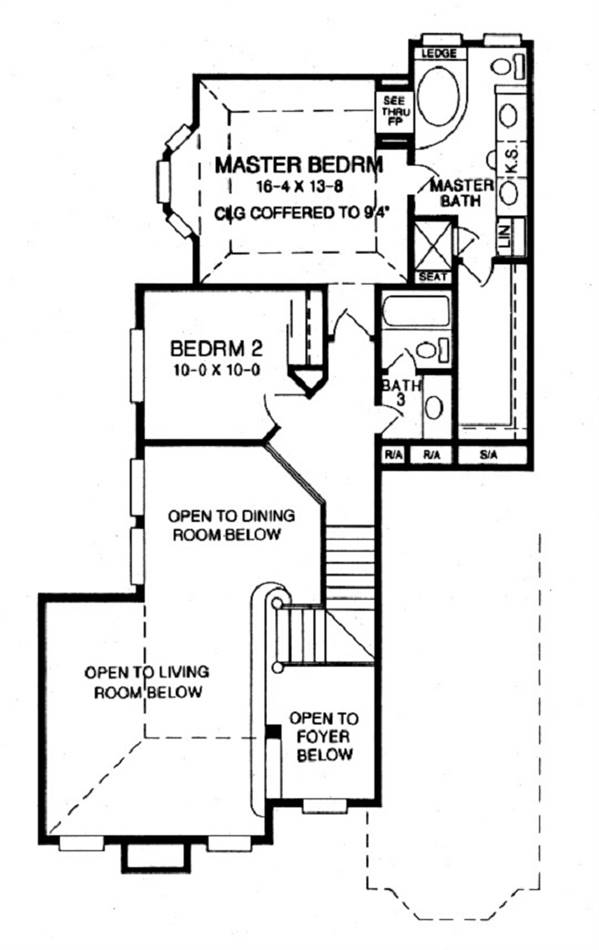

Second Floor Plan:
Purchase Plans
House Plan Pricing
PDF Bid Set
$950.00
PDF
$1,250.00
Multi-Use PDF
$1,750.00
CAD FILE Plus PDF
$2,500.00
More details about our plan packages
Foundation Options
Slab
$0.00
Crawl Space
$350.00
Daylight Basement
$375.00
Basement
$400.00
Additional Plan Options
Full Reverse
$300.00
2x6 Exterior Walls
$300.00
Add 1 Garage Bay
$250.00
Remove 1 Garage Bay
$250.00
Plan Details
General House Information
2
Number of Stories:
34' 7"
Width:
63' 3"
Depth:
Single
Dwelling Number:
Exterior Style
Traditional
Number of Rooms
3
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
1,063 Sq. Ft.
Main Level:
611 Sq. Ft.
Upper Level:
1,674 Sq. Ft.
Total:
Unfinished Square Footage
444 Sq. Ft.
Garage:
126 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Rear
Garage Location:
2
Garage Size:
Rear-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Upstairs
• Separate Tub and Shower
• Sitting Area
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Basement
• Crawlspace
• Slab
• 2 Story Volume
• Family Room
• Fireplace
• Foyer
• Laundry 1st Fl
• Open Floor Plan
• Vaulted Ceilings
• Walk-in Pantry
• Suited for narrow lot
Plan: 16-10, 2 story, 1,674 total square footage
