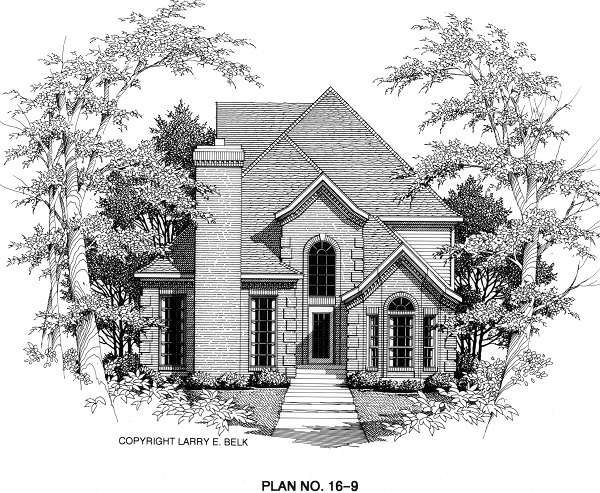

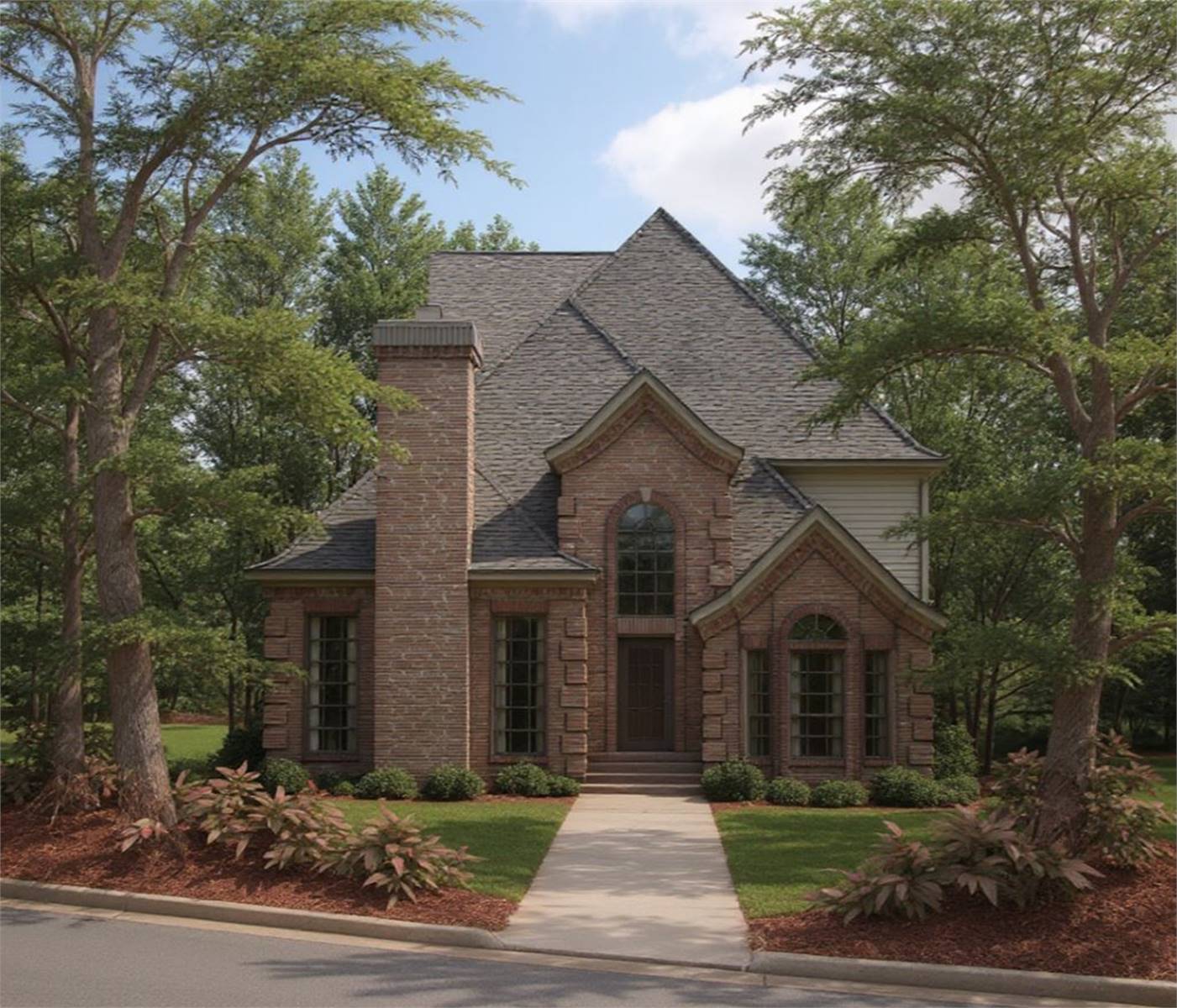

Front Rendering First Floor Plan Second Floor Plan
© copyright by designer

Plan: 16-09 Halley

Plan Specification
Total Square Footage: 1,674
Main Level: 1,063
Second Level: 611
Bedrooms: 3
Baths: 3 Half: 1
Garages: 2
Width/Depth: 34 ft / 63 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer

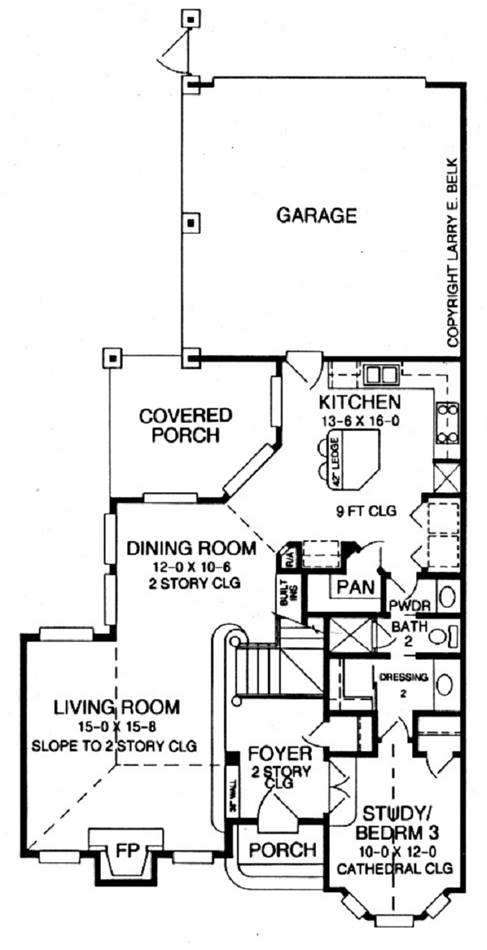

First Floor Plan:
First Floor Plan
© copyright by designer

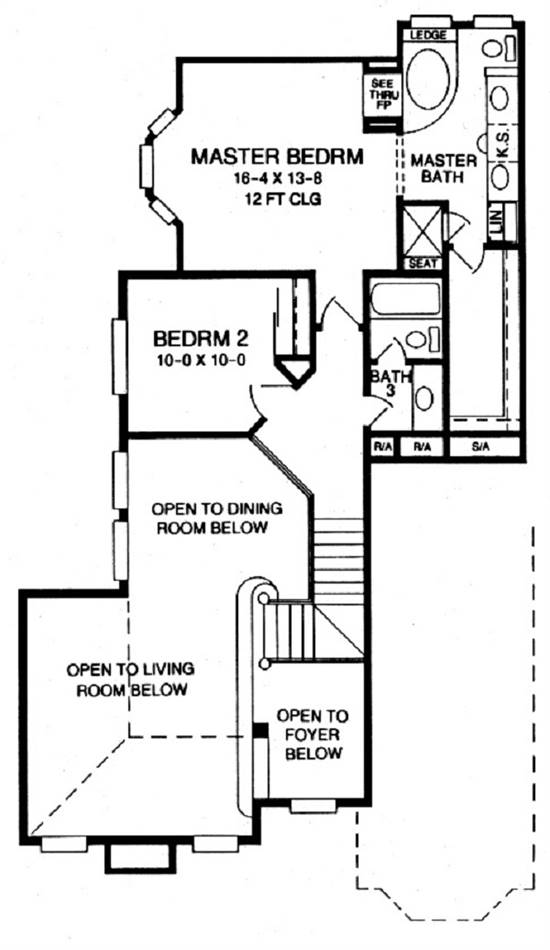

Second Floor Plan:
Second Floor Plan
Add to Favorites
Purchase Plans
House Plan Pricing
$790.00
Foundation Options
$0.00
$350.00
$400.00
Additional Plan Options
$55.00
Plan Details
General House Information
2
Number of Stories:
34' 7"
Width:
63' 3"
Depth:
Single
Dwelling Number:
Exterior Style
Traditional
Number of Rooms
3
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
1,063 Sq. Ft.
Main Level:
611 Sq. Ft.
Upper Level:
1,674 Sq. Ft.
Total:
Unfinished Square Footage
444 Sq. Ft.
Garage:
126 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
GARAGE
Rear
Garage Location:
2
Garage Size:
Rear-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Upstairs
• Separate Tub and Shower
• Sitting Area
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Front Porch
• Rear Porch
• Slab
• 2 Story Volume
• Dining Room
• Family Room
• Fireplace
• Foyer
• Laundry 1st Fl
• Loft / Balcony
• Open Floor Plan
• Vaulted Ceilings
• Walk-in Pantry
• Suited for narrow lot
