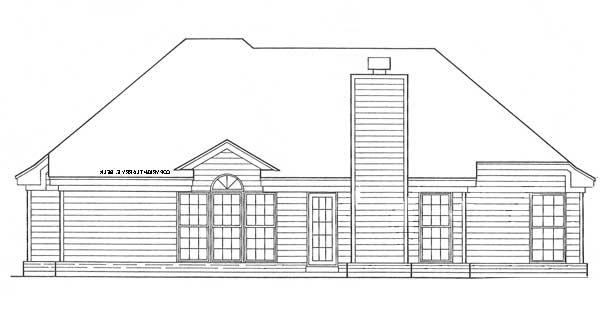

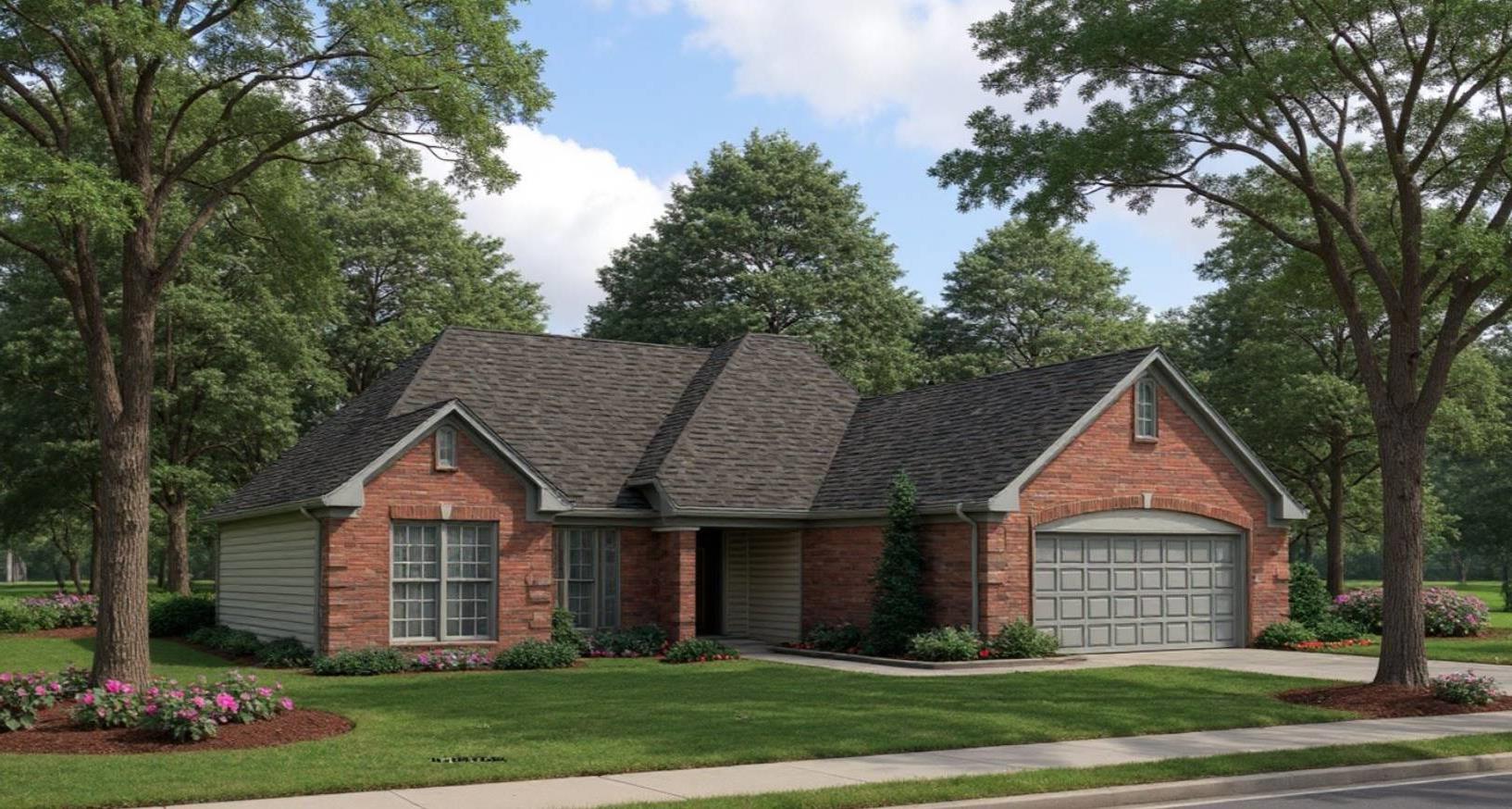

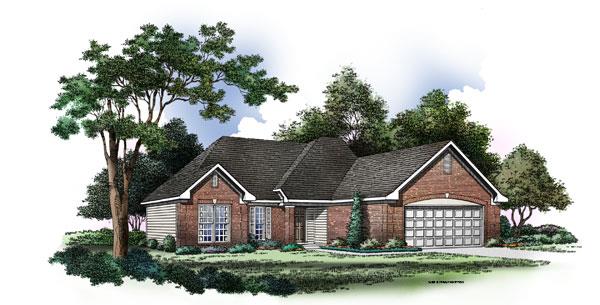

Front Rendering Rear Rendering Floor Plan
© copyright by designer

Plan: 12-02A Sedgewick

Plan Specification
Total Square Footage: 1,282
Main Level: 1,282
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 48 ft / 52 ft
Foundation: Basement, Crawl Space, Daylight Basement, Slab
View typical construction drawing >
© copyright by designer

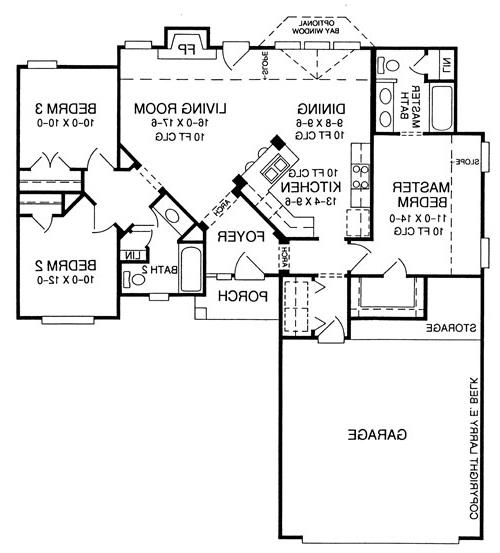

Floor Plan:
Floor Plan
Similar plans: 11-11, 13-01
House Plan Pricing
$750.00
$1,060.00
$1,555.00
$2,250.00
Foundation Options
$0.00
$275.00
$300.00
$325.00
Additional Plan Options
$300.00
$225.00
$250.00
$250.00
Plan Details
General House Information
1
Number of Stories:
48' 10"
Width:
52' 6"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,282 Sq. Ft.
Main Level:
1,282 Sq. Ft.
Total:
Unfinished Square Footage
501 Sq. Ft.
Garage:
32 Sq. Ft.
Porch:
Foundation
Basement
Crawl Space
Daylight Basement
Slab
House And Ceiling Heights
10
First Floor Ceiling:
20' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
10/12
Secondary:
Insulation (R)
Per IRC Climate Zones
GARAGE
Front
Garage Location:
2
Garage Size:
Attached
Feature:
Front-entry
Feature:
Key Features
• Double Vanity Sink
• Master Bdrm Main Floor
• Split Bedrooms
• Walk-in Closet
• Covered Front Porch
• Front Porch
• Basement
• Crawlspace
• Slab
• Arches
• Dining Room
• Family Room
• Fireplace
• Foyer
• Laundry 1st Fl
• Open Floor Plan
• Storage Space
• Peninsula / Eating Bar
• Suited for narrow lot
