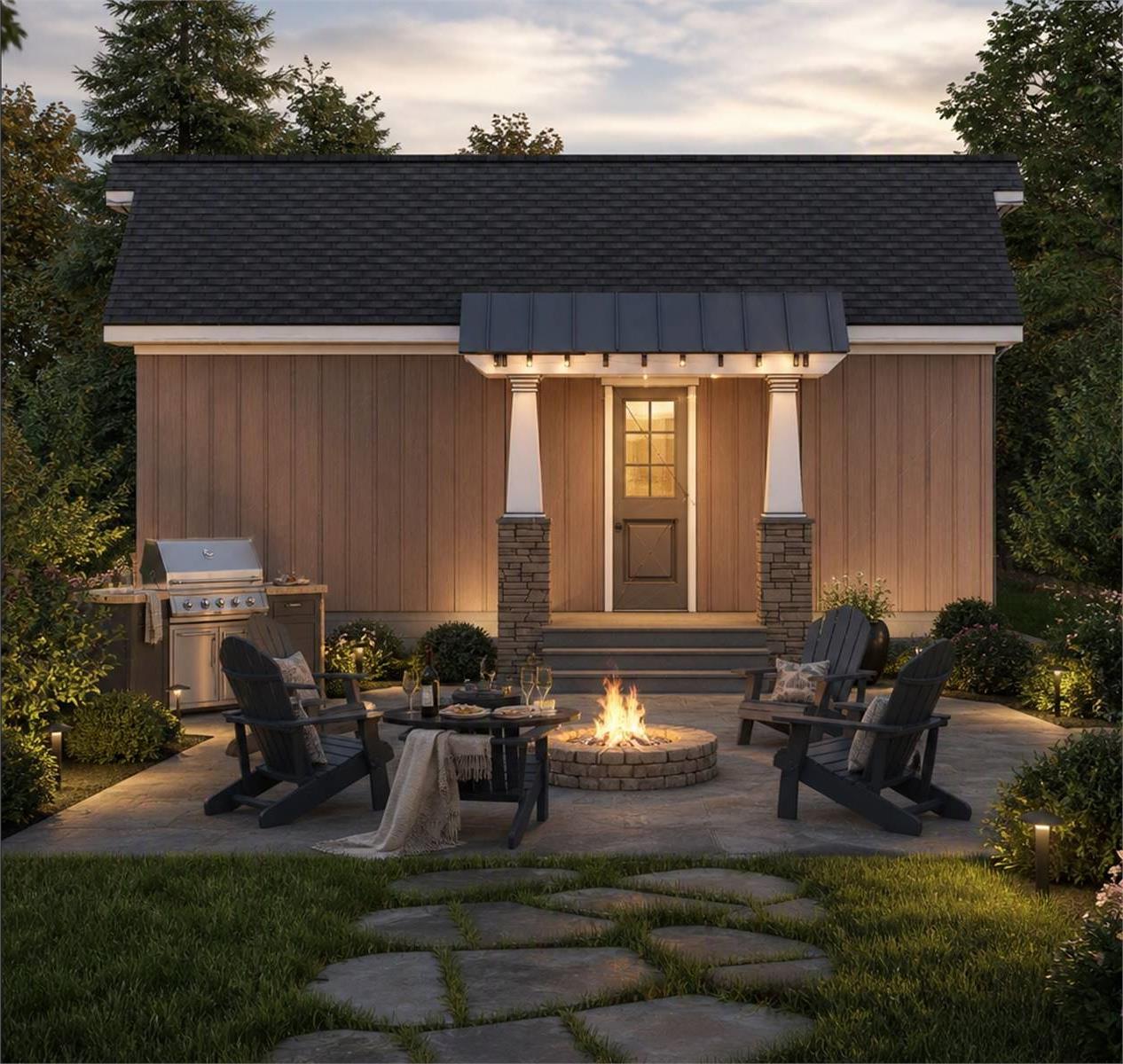

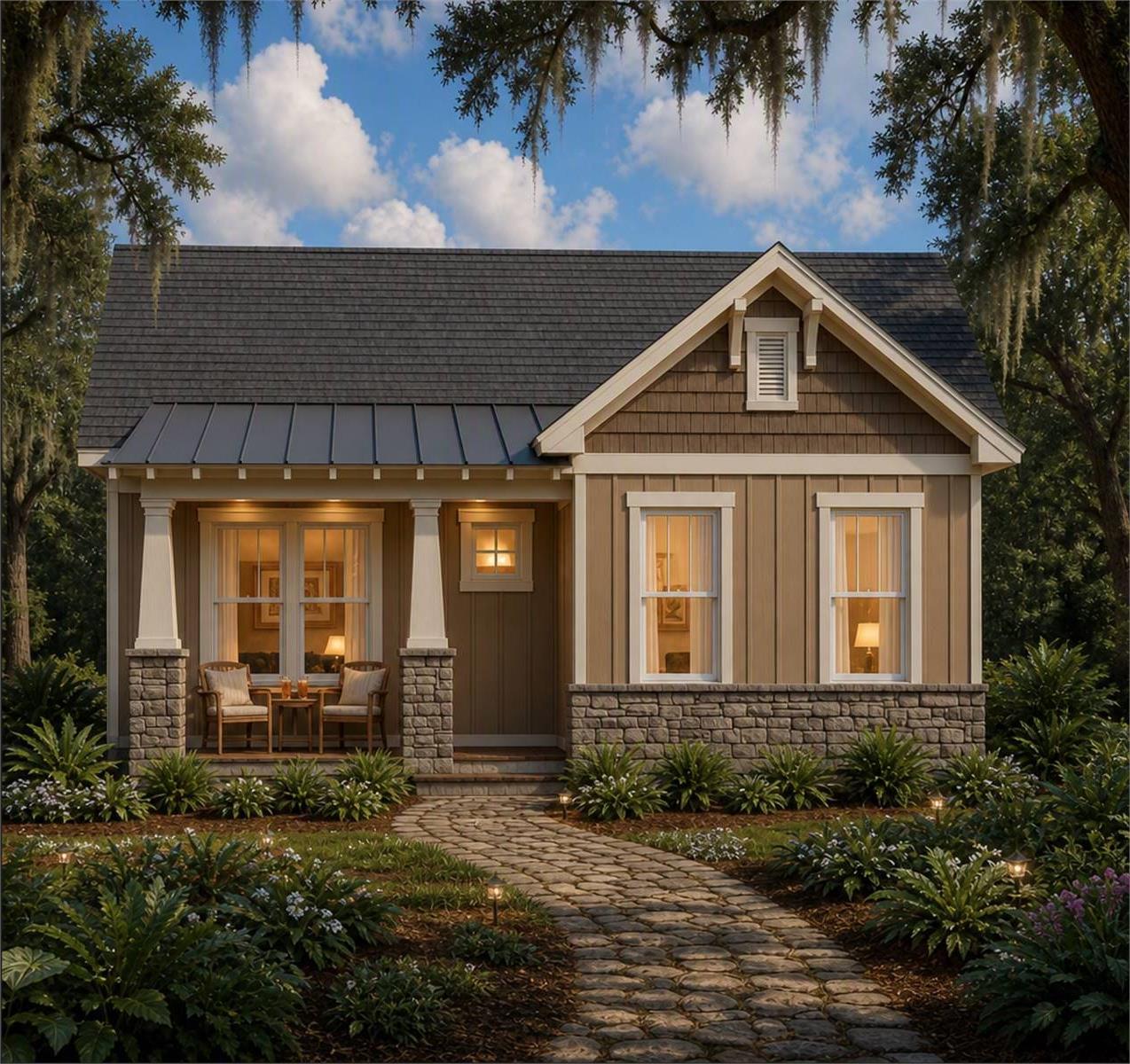

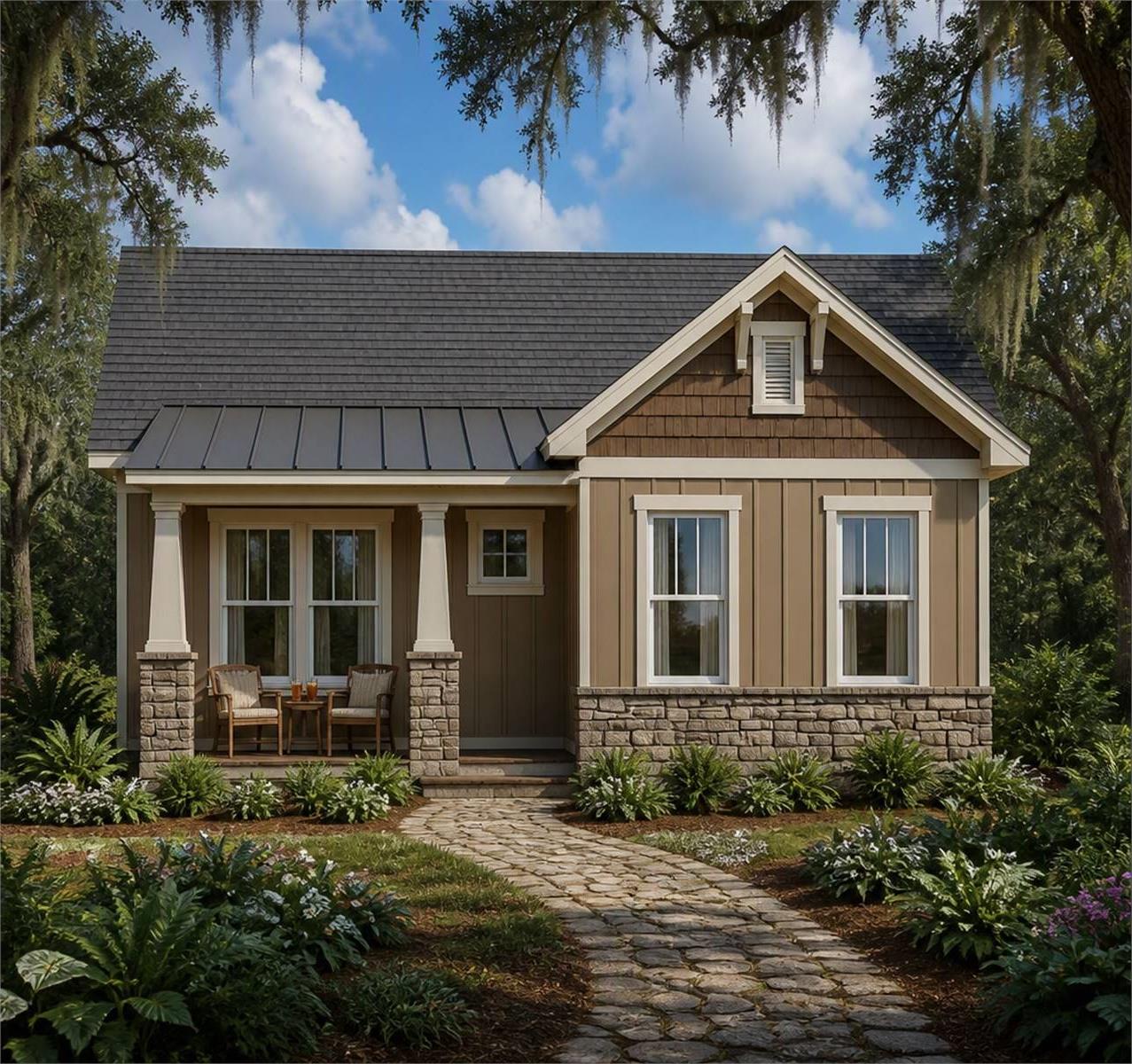

Front View Front View - No Lights Rear View 1st Floor
© copyright by designer

Plan: 06-05 Pin Oak Cottage

Plan Specification
Total Square Footage: 615
Main Level: 615
Bedrooms: 1
Baths: 1 Half: 0
Garages: 0
Width/Depth: 31 ft / 29 ft
Foundation: Slab
View typical construction drawing >
© copyright by designer
1st Floor:
1st Floor
House Plan Pricing
$687.00
$1,075.00
$1,695.00
$2,575.00
Foundation Options
$0.00
Additional Plan Options
$225.00
$300.00
Plan Details
General House Information
1
Number of Stories:
31'
Width:
29'
Depth:
Single
Dwelling Number:
Exterior Style
Cabin
Vacation
Cottage
Country
French Country
Southern
Number of Rooms
1
Bedrooms:
1
Full Baths:
Finished Square Footage
615 Sq. Ft.
Main Level:
615 Sq. Ft.
Total:
Unfinished Square Footage
131 Sq. Ft.
Porch:
Foundation
Slab
House And Ceiling Heights
9
First Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
4/12
Secondary:
Insulation (R)
GARAGE
0
Garage Size:
Key Features
• Walk-in Closet
• Covered Front Porch
• Covered Rear Porch
• Great Room
• Laundry 1st Fl
• Open Floor Plan
• Pantry
• Peninsula / Eating Bar
